NZ CSSD Washer Disinfector – Uniclean® PL II 30 | High-Capacity CSSD Washer
High‑Capacity Tandem‑Chamber Washer Disinfector
ARTG
 |
 |
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Features

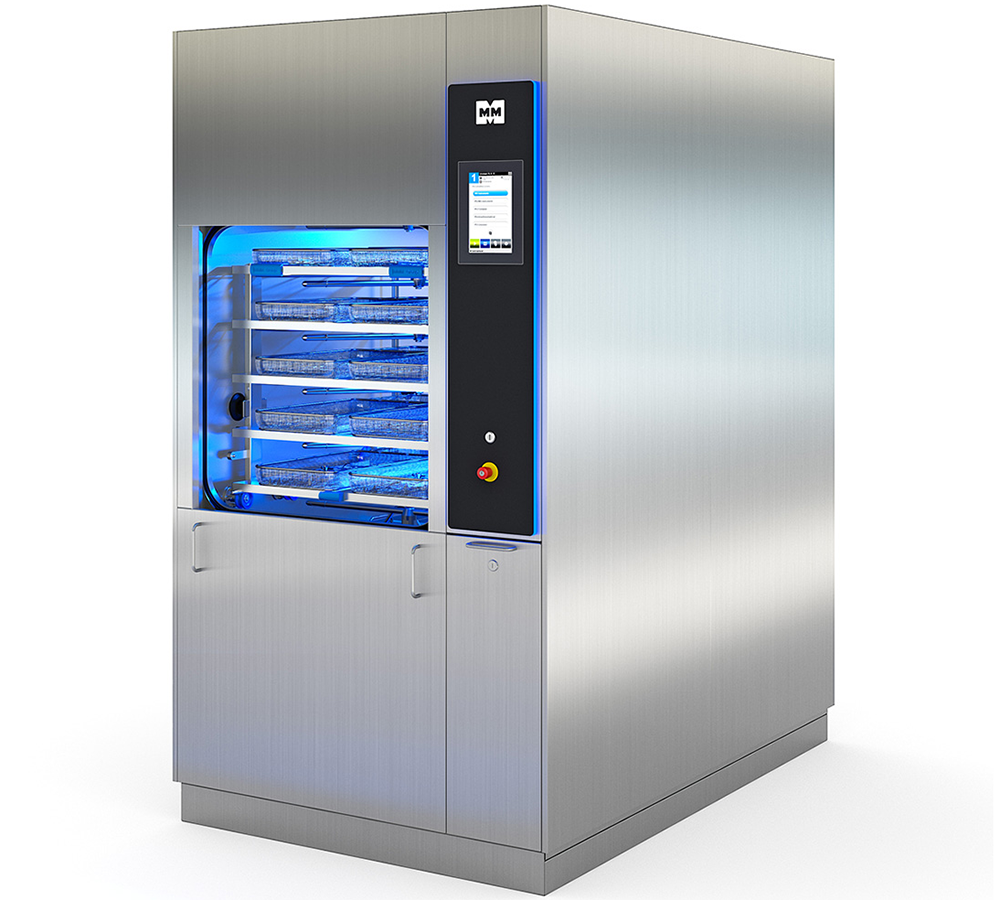

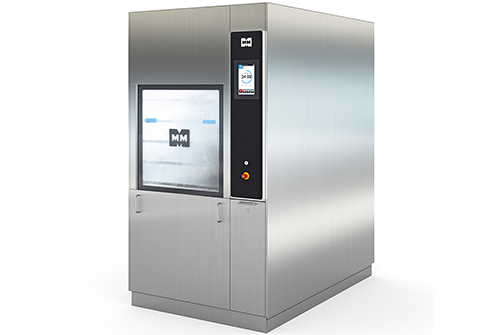

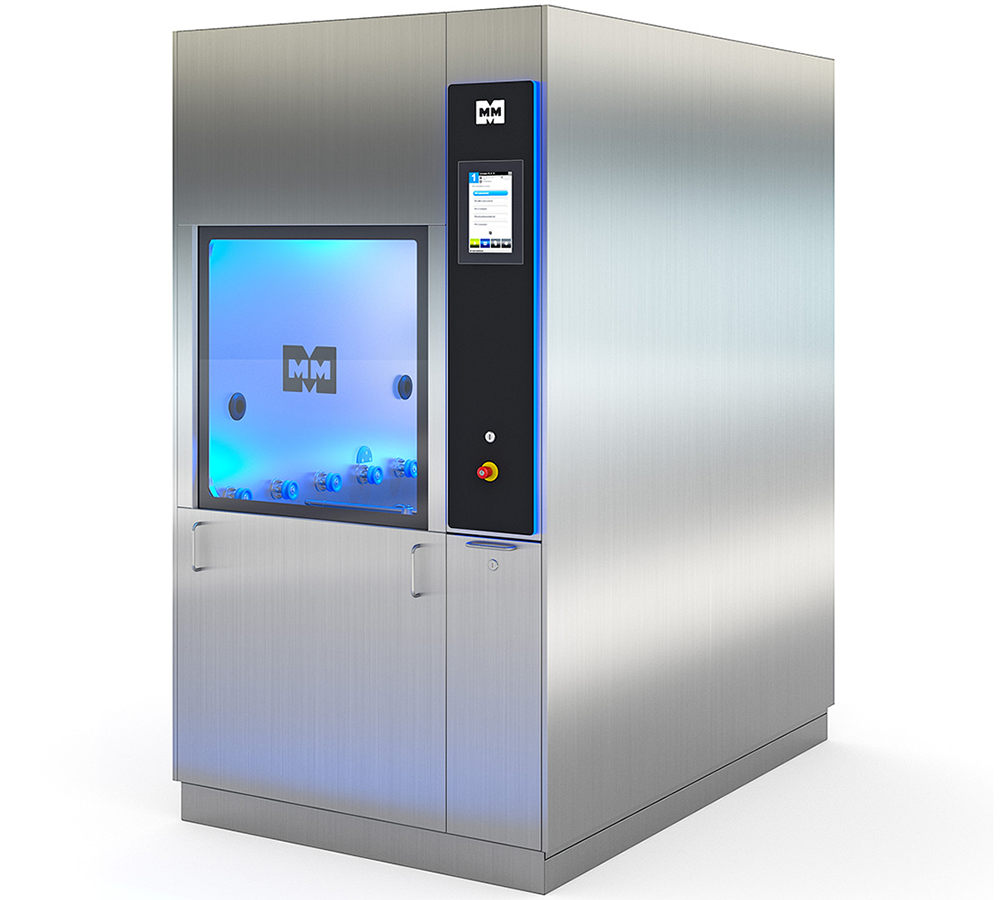

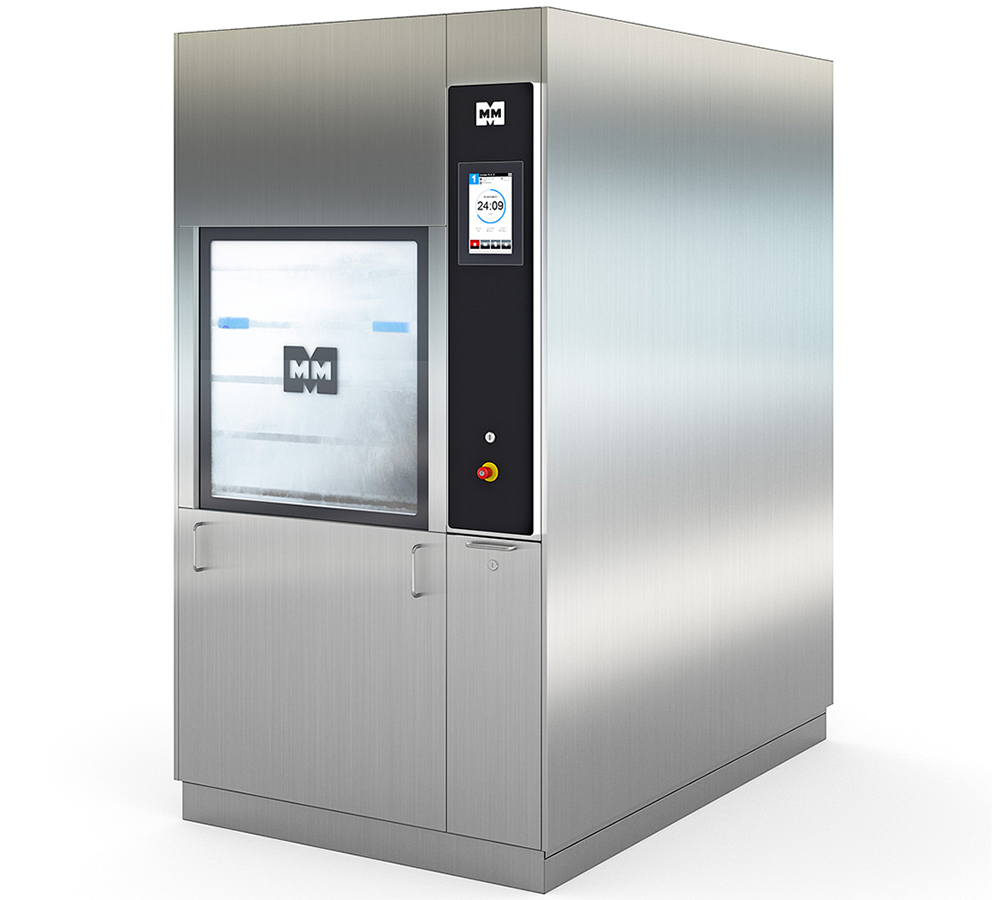

The Uniclean® PL II 30 washer disinfector is designed for high‑throughput CSSD environments where space limitations prevent installation of large‑chamber systems.
Featuring an innovative tandem single‑chamber design, this premium hospital washer doubles reprocessing capacity within the same 1,000 mm width as the PL II 15 — making it ideal for facilities requiring maximum output from minimal space.
Maximum Capacity, Minimal Footprint
The Uniclean® PL II 30 can process in a single cycle:
- 36 DIN trays, or
- 8 × 1 StU sterile containers, or
- 12 × ½ StU sterile containers
This efficiency makes it one of the most space‑effective hospital reprocessors in its class.

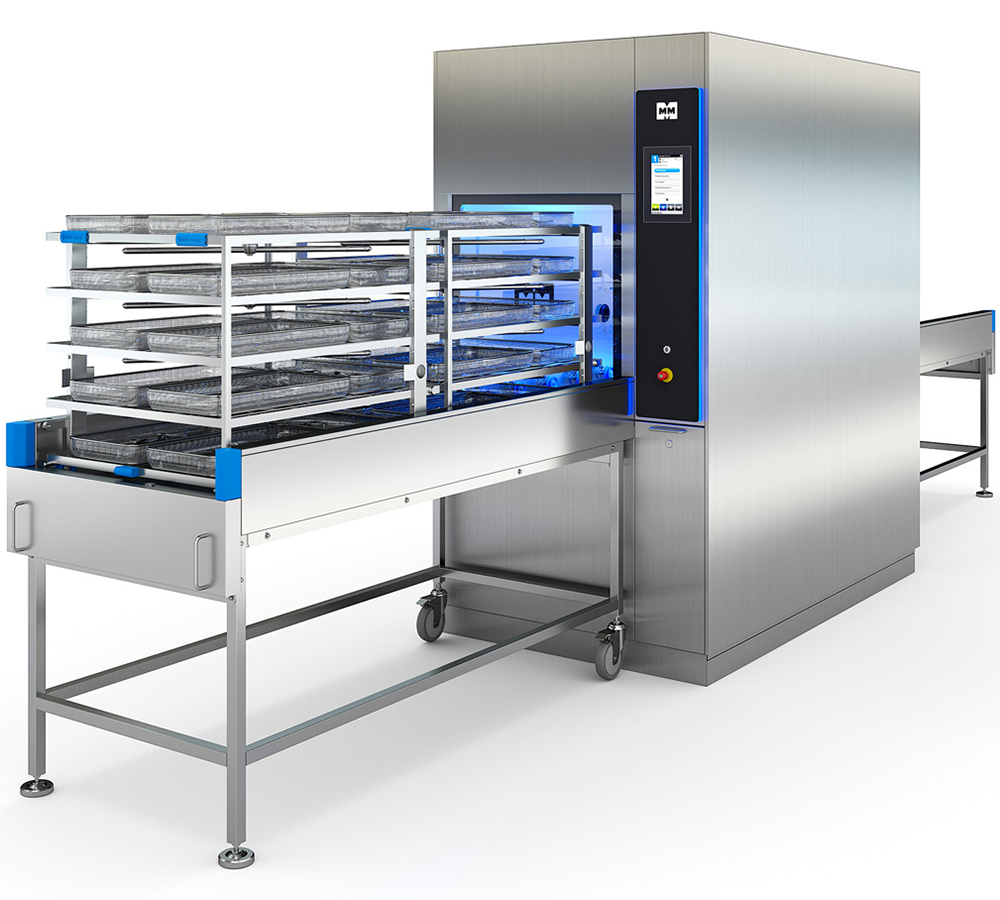

The tandem chamber allows shuttle operation without rack removal, supporting continuous workflow and rapid turnaround in busy reprocessing departments.
| Product Code | Product Description | Pack Size | Quote |
|---|---|---|---|
| Uniclean PL II 30-1 | MMM Group Uniclean PL II 30 Tandem Chamber Washer | ea | |
| X | Transport Trolley UPL II 15/30 | ea | |
| X | Transport Trolley UPL II 15, Height Adjustable | ea | |
| X | Transport Trolley UPL II 15, Height Adjustable (without drain) | ea |
Key Benefits
- High‑capacity washer disinfector with tandem chamber design
- Double throughput within the same footprint as PL II 15
- Industry‑leading drying performance via double H‑Flow system
- Optimised workflow with shuttle functionality
- Compatible racks and accessories across PL II series
Product Highlights
- Compact width: 1,000 mm
- Tandem chamber for two racks per cycle

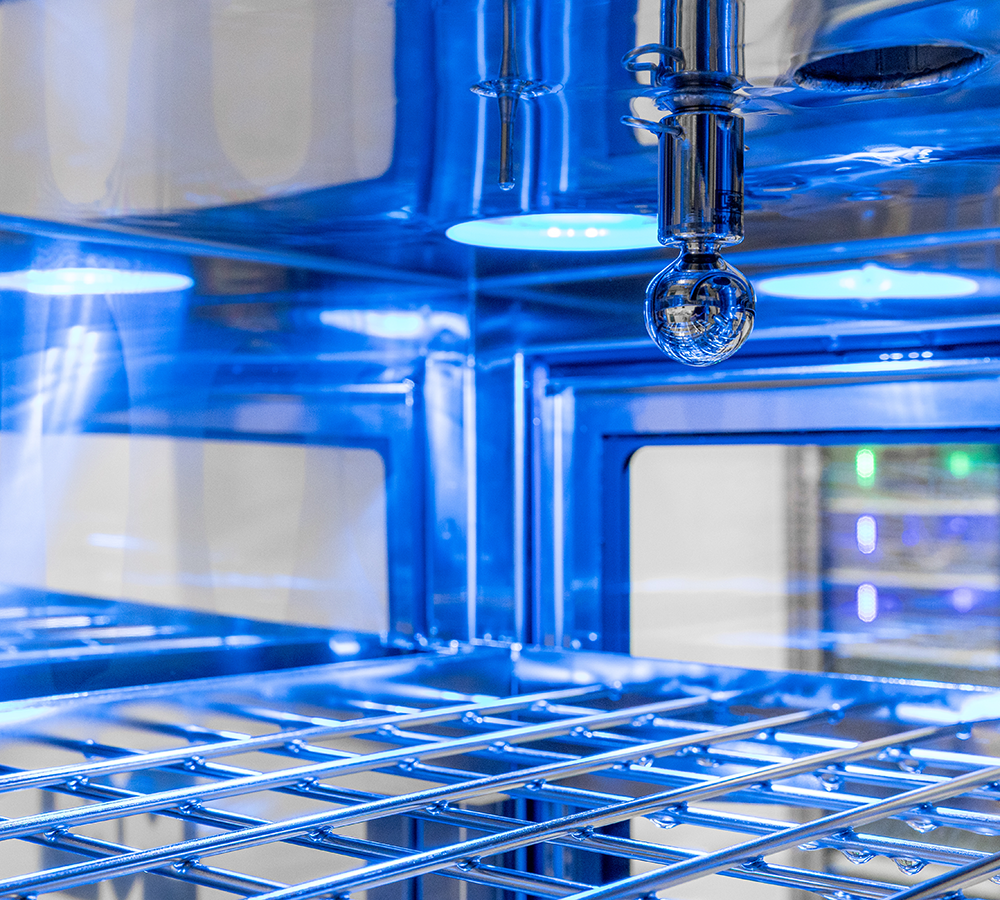

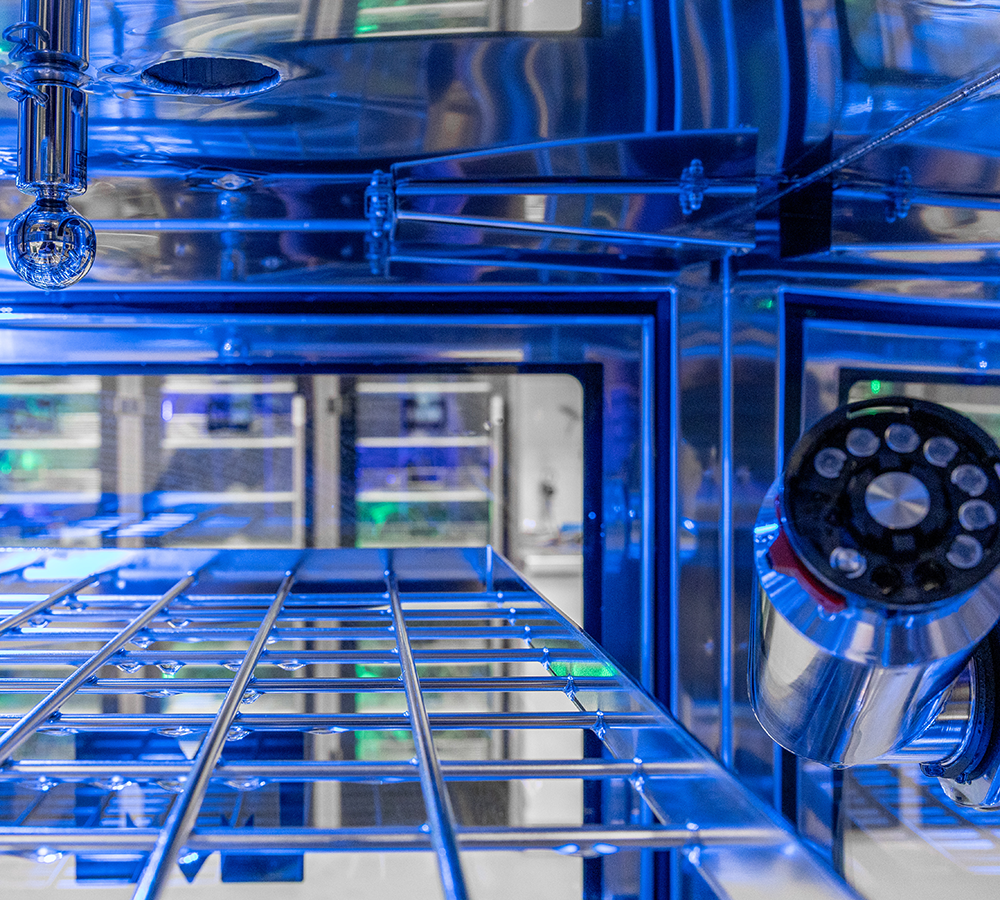

- 8D cleaning system with advanced water management
- Double H‑Flow high‑performance drying system
- Dual HEPA H14 filtration
- Barcode‑enabled rack recognition

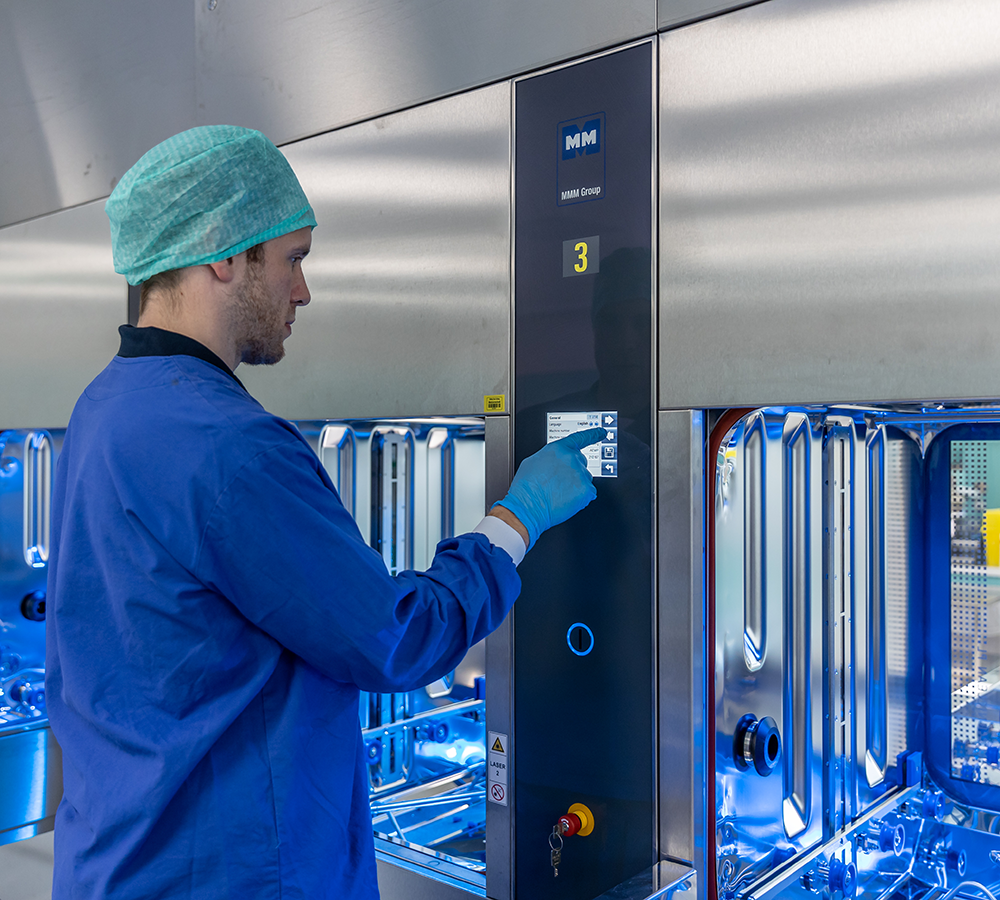

- “Halo” LED control panel with 7″ Smart HMI
- Capable of reprocessing robotic surgical instruments
Standard Features
- Processing capacity for 36 DIN trays
- Industrial PLC in IP55‑rated cabinet
- Process Parameter Verification (PPV)
- 8D cleaning system
- Dual H‑Flow drying technology

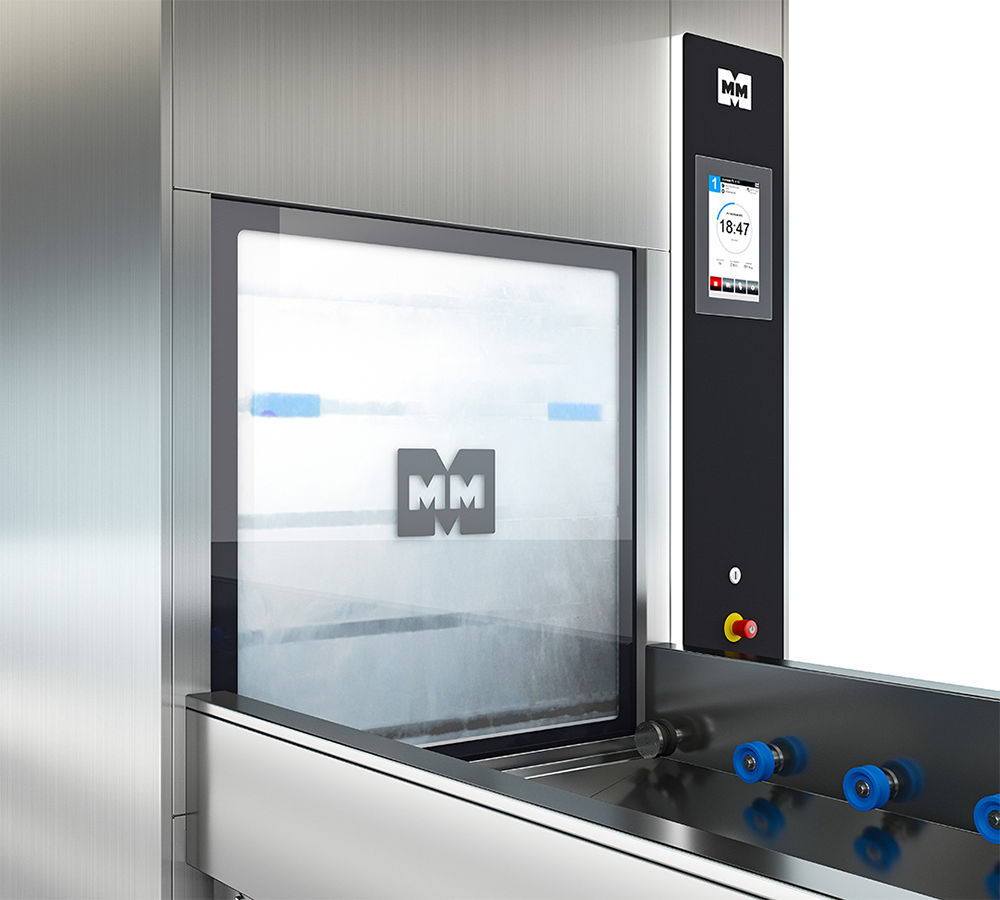

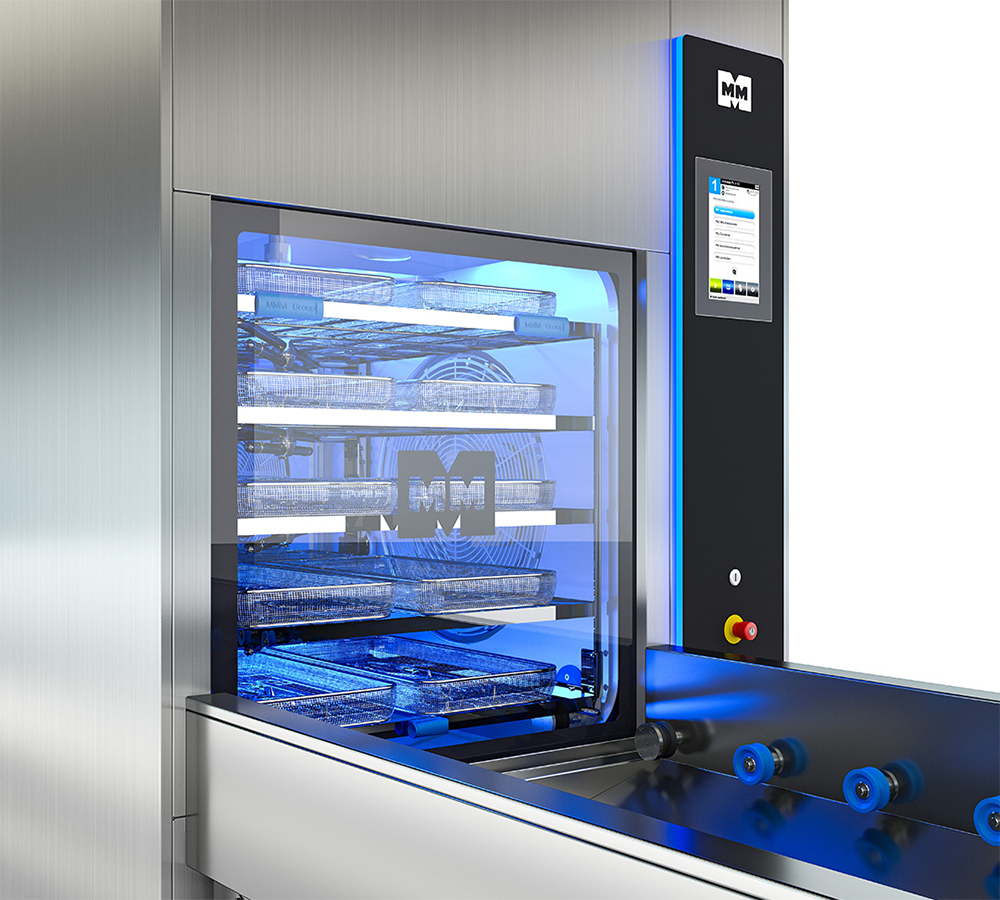

- Vertically opening electrically driven glass doors
- AISI 316L stainless steel wash chamber
- Sliding control and dosing drawers
- Intelligent water and energy management
- Semi‑automatic rack loading and unloading
- Pre‑configured wash programs
- LED chamber lighting
- Thermal disinfection with selectable A₀ or temperature/time control
Technical Data
| Dimensions (mm) | Uniclean PL II 30-2 |
| Product Outer (H x W x D) | 1,950 x 1,000 x 1,778 |
| Product Chamber (H x W x D) | 648 x 640 x 1,640 |
| Chamber Volume Net / Gross (L) | 680 |
| Load Capacities | |
| Surgical Instruments DIN Sieve Trays | 36 |
Optional Configuration
- Deionised water pre‑heating and recovery systems

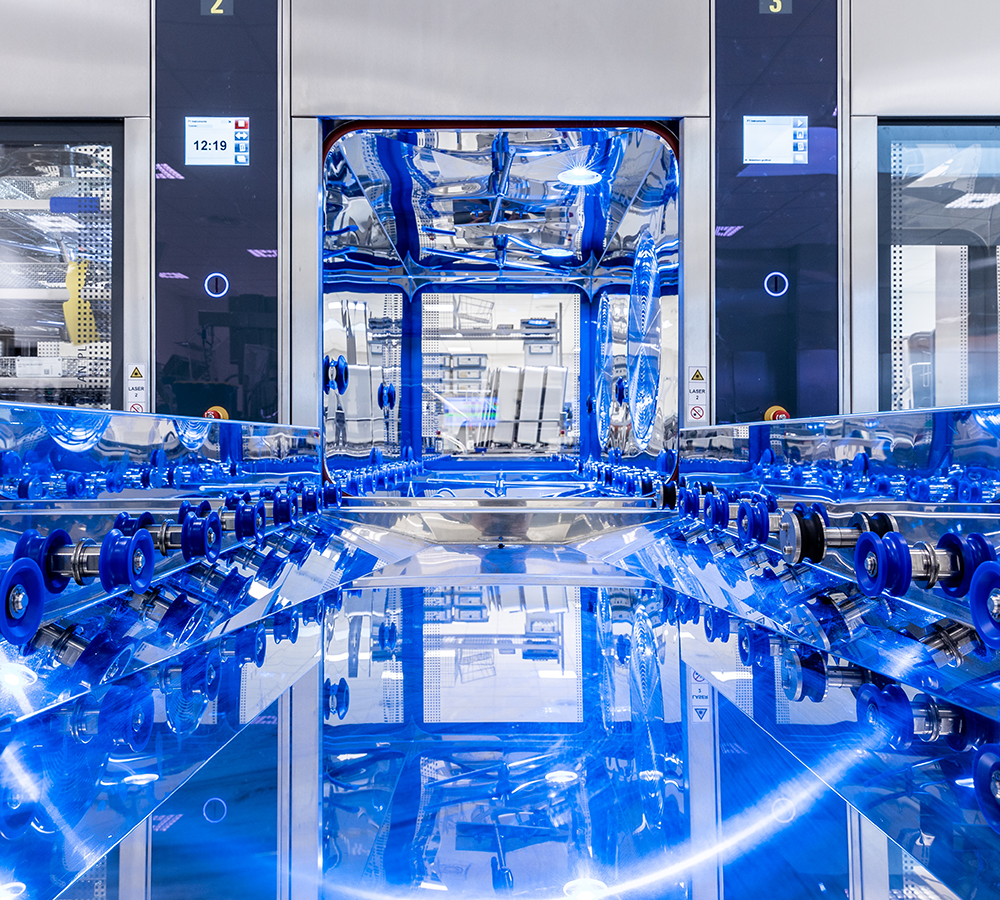

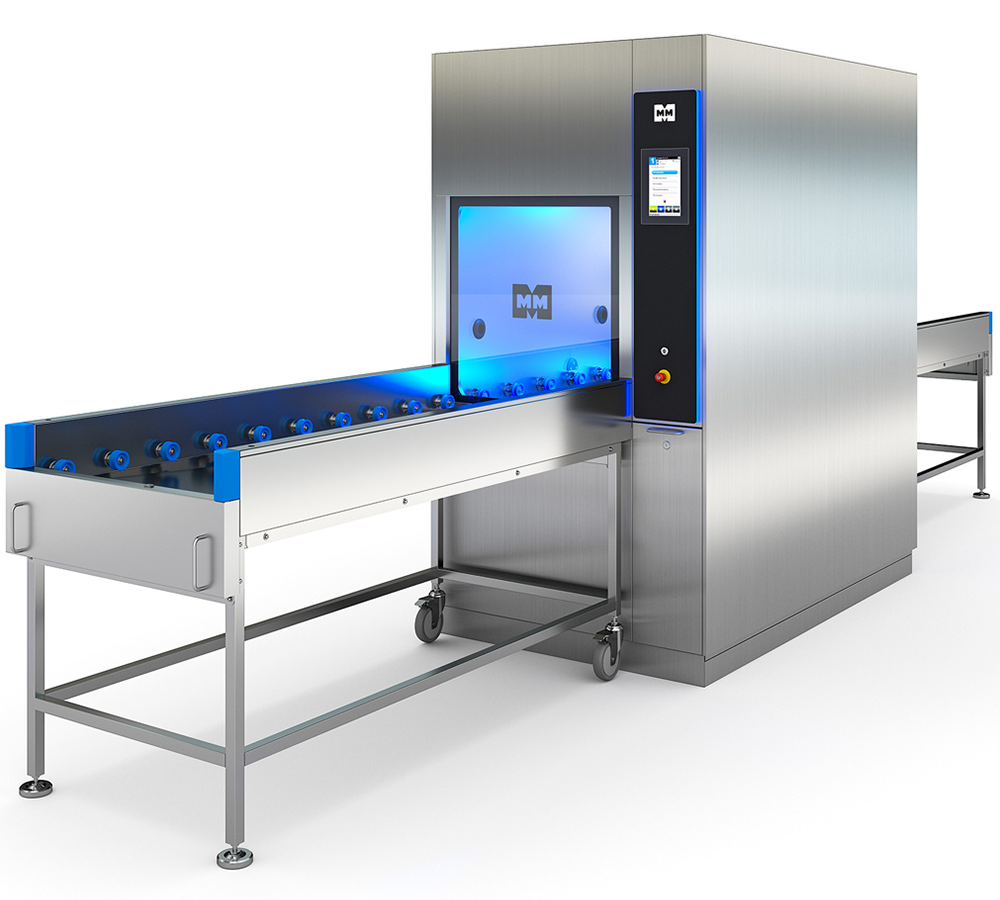

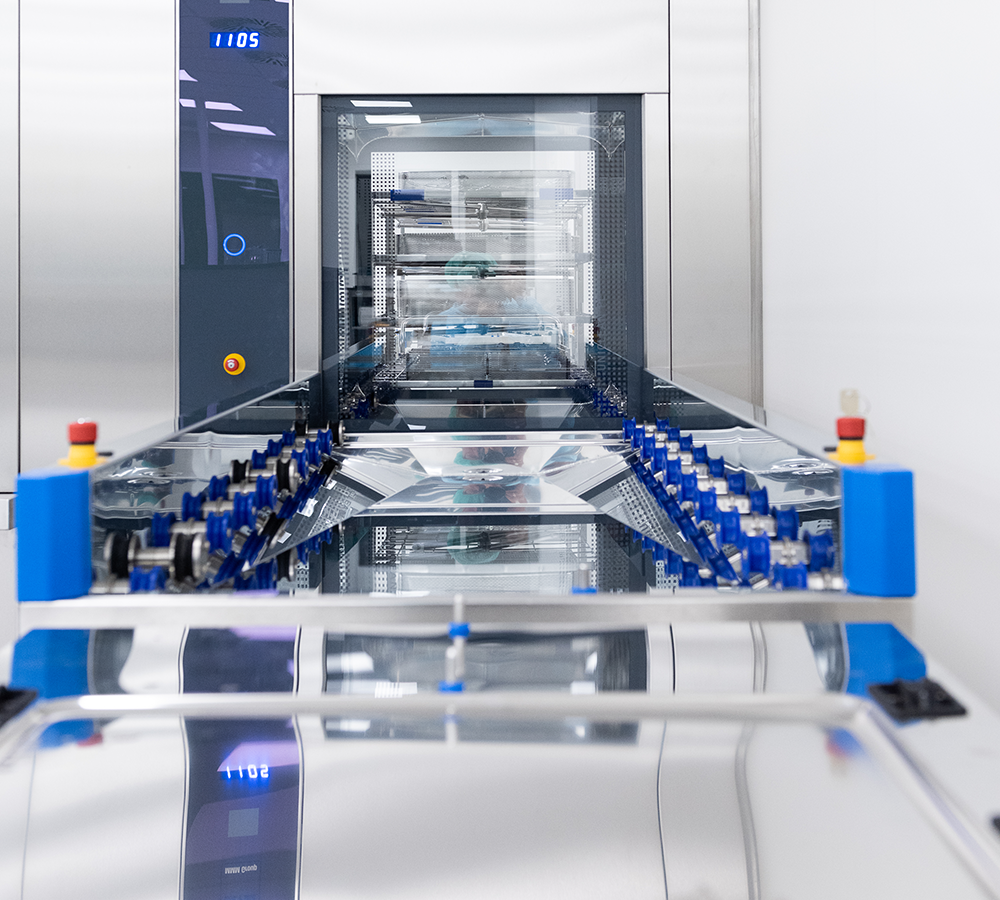

- Automatic roller conveyor loading/unloading
- Advanced barcode and DataMatrix tracking
- Additional dosing pumps and micro‑dosing lines
- Conductivity monitoring
- Energy optimisation module
- Remote service and diagnostics
- Intelligent Service Advisor (ISA)
Accessories
- Extensive rack and trolley configurations
- Manual and automatic roller conveyors
- Rack storage tables and transfer windows
- UPL C‑Shuttle® automated cross‑slide system
- RUMED360® digital traceability and documentation software
Relevant Product
Applications
- CSD
- Healthcare Facilities
- Large Dental Practices
