NZ Selectomat® PL Compact Line, MMM Group
Steam Sterilisers for High Performance in Space-Constrained CSSD Environments
ARTG
 |
 |
 |
 |
Features
The Selectomat® PL Compact Line is a high-performance steam steriliser designed for healthcare facilities where space is limited but throughput and reliability cannot be compromised. Engineered for modern CSSD sterilisation workflows, it delivers consistent, compliant results in a compact footprint.
Ideal for hospitals, day surgeries, and specialised clinics, this system combines advanced sterilisation technology with efficient design—supporting the safe reprocessing of medical devices while optimising available space.
Compact Design. Full Sterilisation Capability
Balancing chamber capacity with available floor space is a common challenge in CSSD environments. The Selectomat® PL Compact Line addresses this with a streamlined footprint (from just 995 mm wide), without sacrificing performance.
- Designed for compact CSSD layouts, including retrofit projects
- Optimised chamber capacity-to-footprint ratio
- Supports efficient workflow in high-demand sterilisation areas
| Product Code | Product Description | Pack Size | Quote |
|---|---|---|---|
| Selectomat PL 559-1 | Selectomat PL 559, 1 Door Steam Steriliser | ea | |
| Selectomat PL 559-2 | Selectomat PL 559, 2 Door Steam Steriliser | ea | |
| Selectomat PL 663-1 | Selectomat PL 663, 1 Door Steam Steriliser | ea | |
| Selectomat PL 663-2 | Selectomat PL 663, 2 Door Steam Steriliser | ea | |
| Selectomat PL 666-1 | Selectomat PL 666, 1 Door Steam Steriliser | ea | |
| Selectomat PL 666-2 | Selectomat PL 666, 2 Door Steam Steriliser | ea | |
| Selectomat PL 669-1 | Selectomat PL 669, 1 Door Steam Steriliser | ea | |
| Selectomat PL 669-2 | Selectomat PL 669, 2 Door Steam Steriliser | ea | |
| Selectomat PL 6612-1 | Selectomat PL 6612, 1 Door Steam Steriliser | ea | |
| Selectomat PL 6612-2 | Selectomat PL 6612, 2 Door Steam Steriliser | ea | |
| Selectomat PL 6618-1 | Selectomat PL 6618, 1 Door Steam Steriliser | ea | |
| Selectomat PL 6618-1 | Selectomat PL 6618, 2 Door Steam Steriliser | ea |
Key Features
Efficient, User-Centric Operation
- Intuitive touchscreen HMI with clear process visibility
- Pre-configured sterilisation programs for fast setup
- LED chamber illumination for improved load visibility
Optimised Resource Use
- Water-saving vacuum system
- Energy-efficient operation with programmable standby modes
- Optional integrated steam generation for facilities without central steam
Enhanced Process Assurance
- Integrated SteamSpy® automatic Bowie-Dick test and cycle monitoring
- Continuous monitoring of critical parameters (temperature, pressure, vacuum)
- Cycle data recording for traceability and compliance
Designed for CSSD Efficiency
The Selectomat® PL Compact Line supports streamlined CSSD workflows through smart automation and ergonomic design.
- Automatic unloading options to reduce manual handling
- Front-access servicing for easier maintenance
- Hygienic chamber and external surfaces for simplified cleaning
Optional integration supports:
- Batch tracking and documentation systems
- Barcode scanning for load identification
- Remote diagnostics and service capabilities
Flexible Configuration to Suit Your Facility
Every CSSD has unique requirements. The Selectomat® PL Compact Line offers flexible configuration options to support different operational needs:
- Integrated or external steam supply
- Variable chamber finishes for enhanced durability and cleaning
- Additional monitoring systems (air detection, water quality)
- Customisable sterilisation programs for complex loads

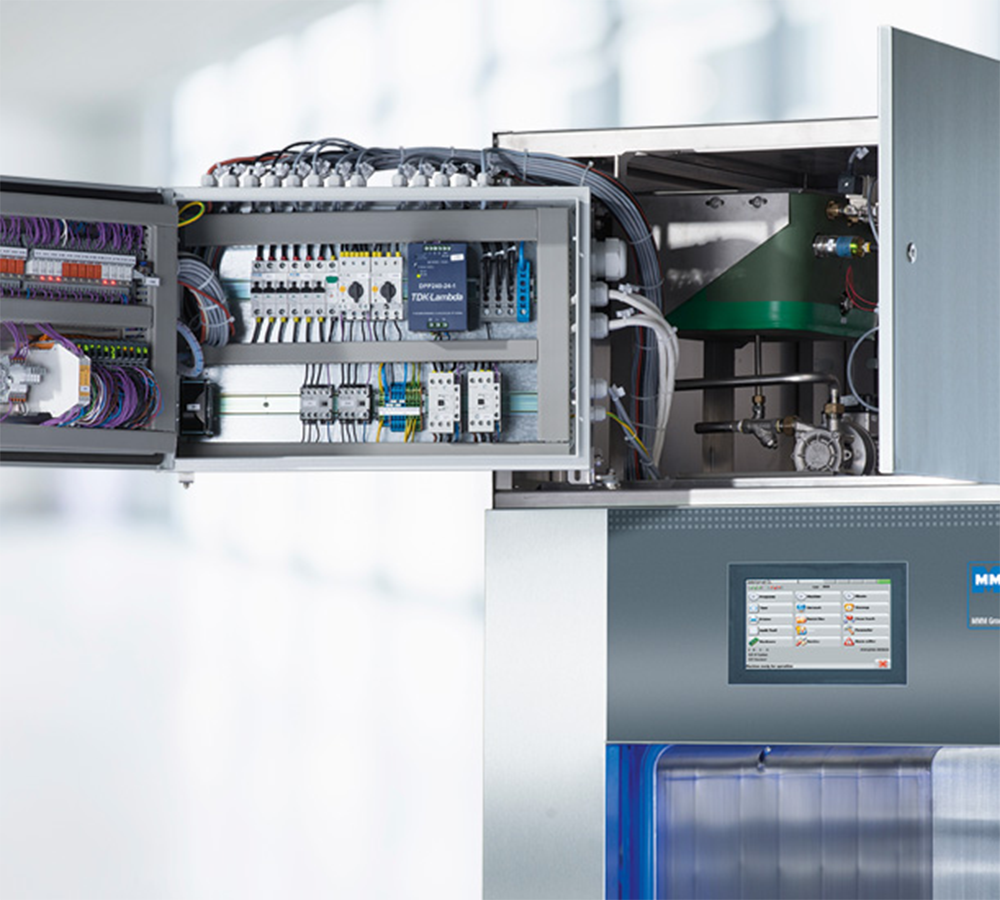

Advanced Process Control and Software
The system uses a robust industrial control platform to ensure precise and reliable sterilisation.
- Industrial-grade PLC control for high process reliability
- Redundant sensors to ensure process safety
- Programmable cycles tailored to load type and packaging
- Up to 50 configurable programs
Standard cycles typically include:
- 134°C universal sterilisation (instruments and textiles)
- 121°C cycles for temperature-sensitive items
- Vacuum and leak testing programs
- Bowie-Dick testing
Technical Data
|
Dimensions (mm) |
Product Outer (HxWxD) |
Product Chamber (HxWxD) |
Chamber Volume (L) |
StU) |
| Selectomat PL 559 | 2,200 x 895 x 1,290 mm | 508 x 508 x 990 mm | 254 | 1 |
| Selectomat PL 636 | 2,400 x 795 x 990 mm | 670 x 360 x 700 mm | 160 | 2 |
| Selectomat PL 666 | 2,400 x 995 x 990 mm | 702 x 652 x 690 mm | 314 | 4 |
| Selectomat PL 669 | 2,400 x 995 x 1,290 mm | 702 x 652 x 990 mm | 453 | 6 |
| Selectomat PL 6612 | 2,400 x 995 x 1,640 mm | 702 x 652 x 1,340 mm | 610 | 8 |
| Selectomat PL 6618 | 2,400 x 995 x 2,240 mm | 702 x 652 x 1,940 mm | 883 | 12 |
Integrated Steam Generation (Optional)
Optional Configuration
For facilities without central steam supply, the optional integrated steam generator provides a reliable, high-quality steam source:
- Consistent steam quality for effective sterilisation performance
- Reduced maintenance risk through water management features
- Efficient operation tailored to chamber size
Why Choose Selectomat® PL Compact Line?
- Maximises capacity within limited space
- Supports safe, compliant medical sterilisation processes
- Enhances CSSD efficiency with automation and smart controls
- Flexible configurations to meet facility-specific needs
Applications
The Selectomat® PL Compact Line is ideally suited for:
- CSSD sterilisation departments
- Hospitals and healthcare facilities
- Day hospitals and ambulatory centres
- Surgical and specialist clinics
