Large Scale Washer Disinfector Enhancing CSSD Workflows

Features

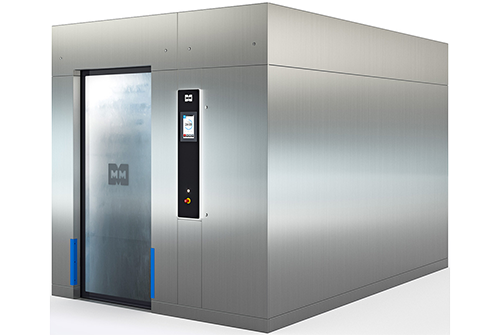

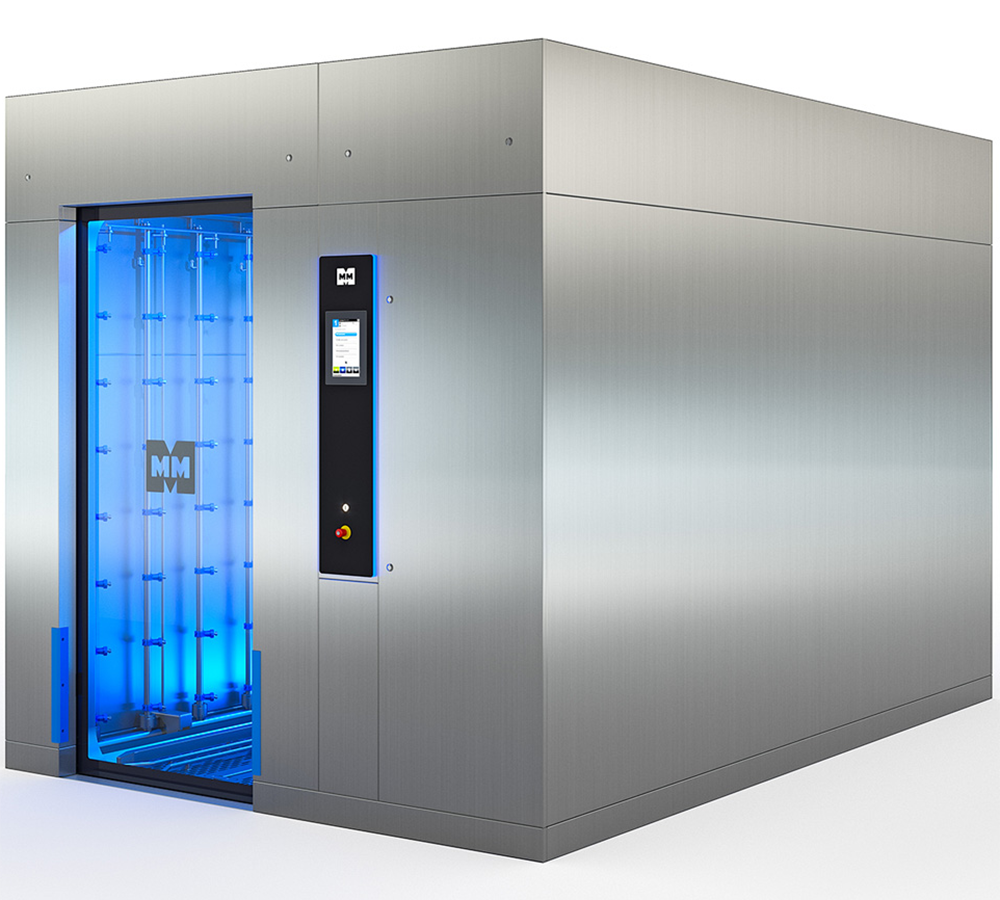

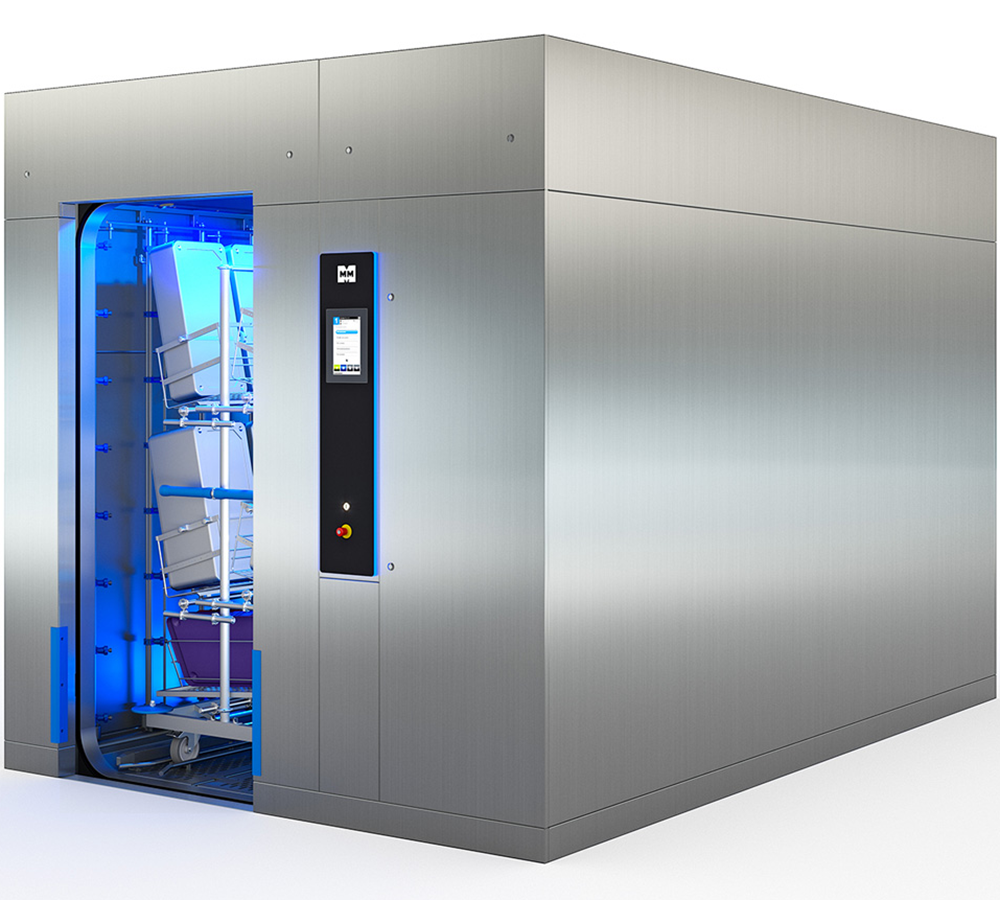

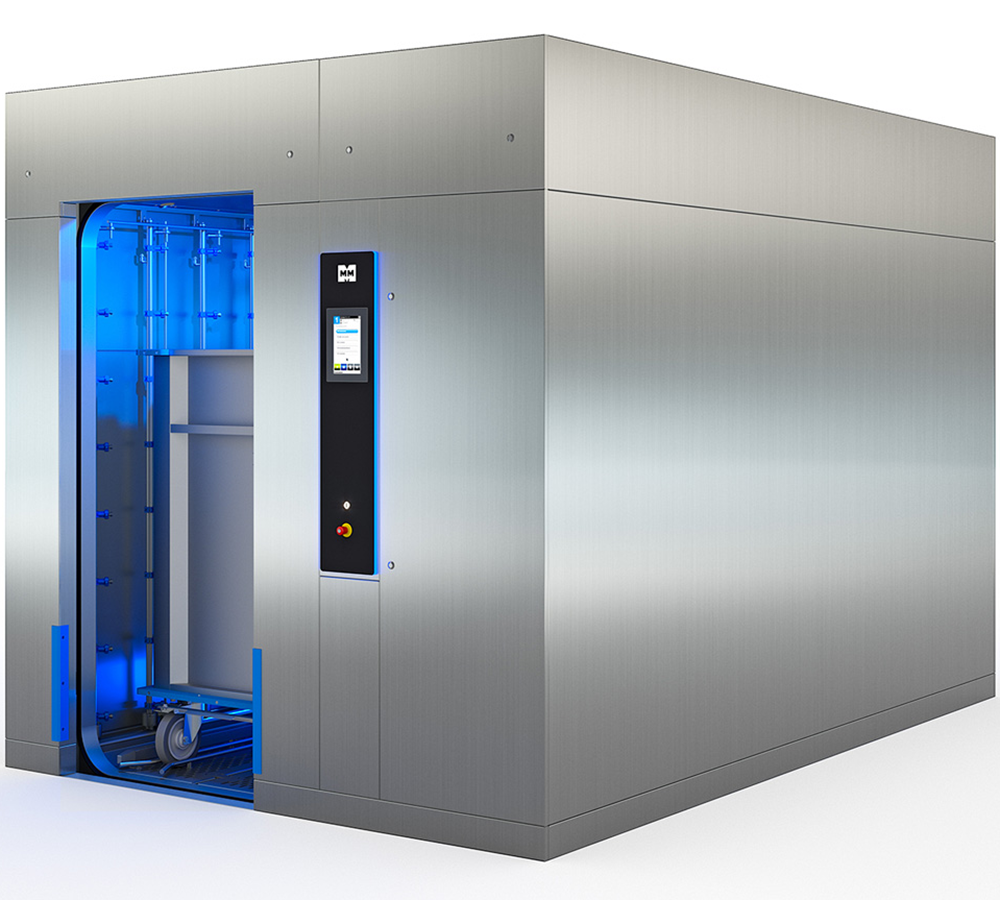

The Uniclean® ML (Multi Line) is a high-capacity washer disinfector engineered for large-scale instrument reprocessing and high-volume hospital applications.

Designed for modern CSSD environments, this advanced system delivers powerful cleaning, efficient drying and exceptional workflow flexibility — making it an ideal solution for hospitals requiring reliable large volume washer disinfectors and hospital reprocessors.

With multiple chamber sizes, configurable loading systems and adaptable cycle programs, the Uniclean® ML supports efficient reprocessing of both standard surgical instruments and bulky healthcare items within a single platform.

Built for Large Volume Reprocessing

The Uniclean® ML is specifically developed for large-scale hospital washers applications, including:

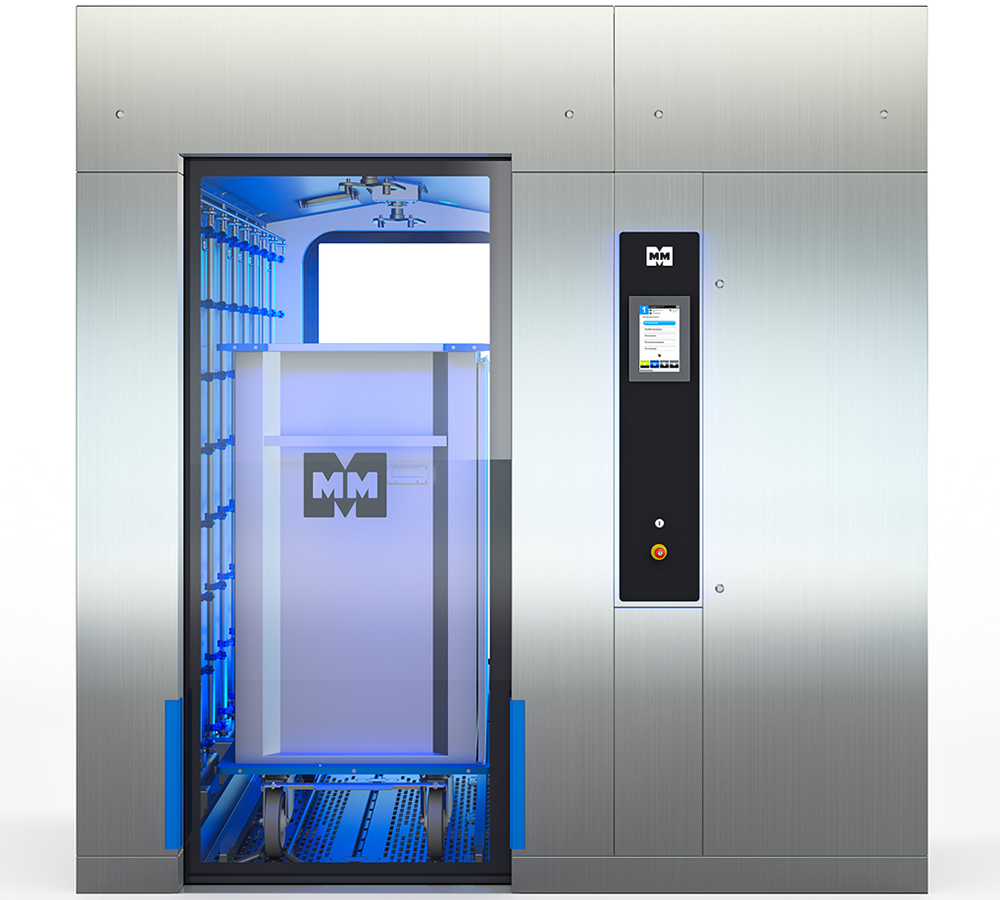

Transport trolleys and case carts
Sterilisation containers and trays
OR shoes and reusable accessories
Plastic containers and receptacles
Bowls, basins and kidney dishes
General surgical instruments (with appropriate loading)

This versatility makes it a powerful alternative to traditional CSSD tunnel washers, providing high throughput with greater flexibility for mixed loads and complex item types.

Product Code	Product Description	Pack Size
Uniclean ML - 1620	MMM Group Uniclean ML, 1620 Large Chamber WD	ea
Uniclean ML - 2220	MMM Group Uniclean ML, 2220 Large Chamber WD	ea
Uniclean ML - 3120	MMM Group Uniclean ML, 3120 Large Chamber WD	ea

Key Benefits

High-capacity washer disinfectors for central sterile services
Flexible system for both instrument reprocessing and large items
Powerful cleaning with optimised water and chemical distribution
Fast, efficient drying to improve turnaround times
Scalable solution for growing hospital demand

Product Highlights

Designed for large-scale reprocessing environments
Multiple chamber sizes to suit CSSD layouts
Flexible, modular loading trolley system
Advanced cleaning and drying performance
Integrated Smart HMI and status lighting
Compact footprint for its capacity

High-Performance Cleaning & Drying

Advanced Cleaning Performance

The Uniclean® ML delivers consistent and repeatable cleaning outcomes through:

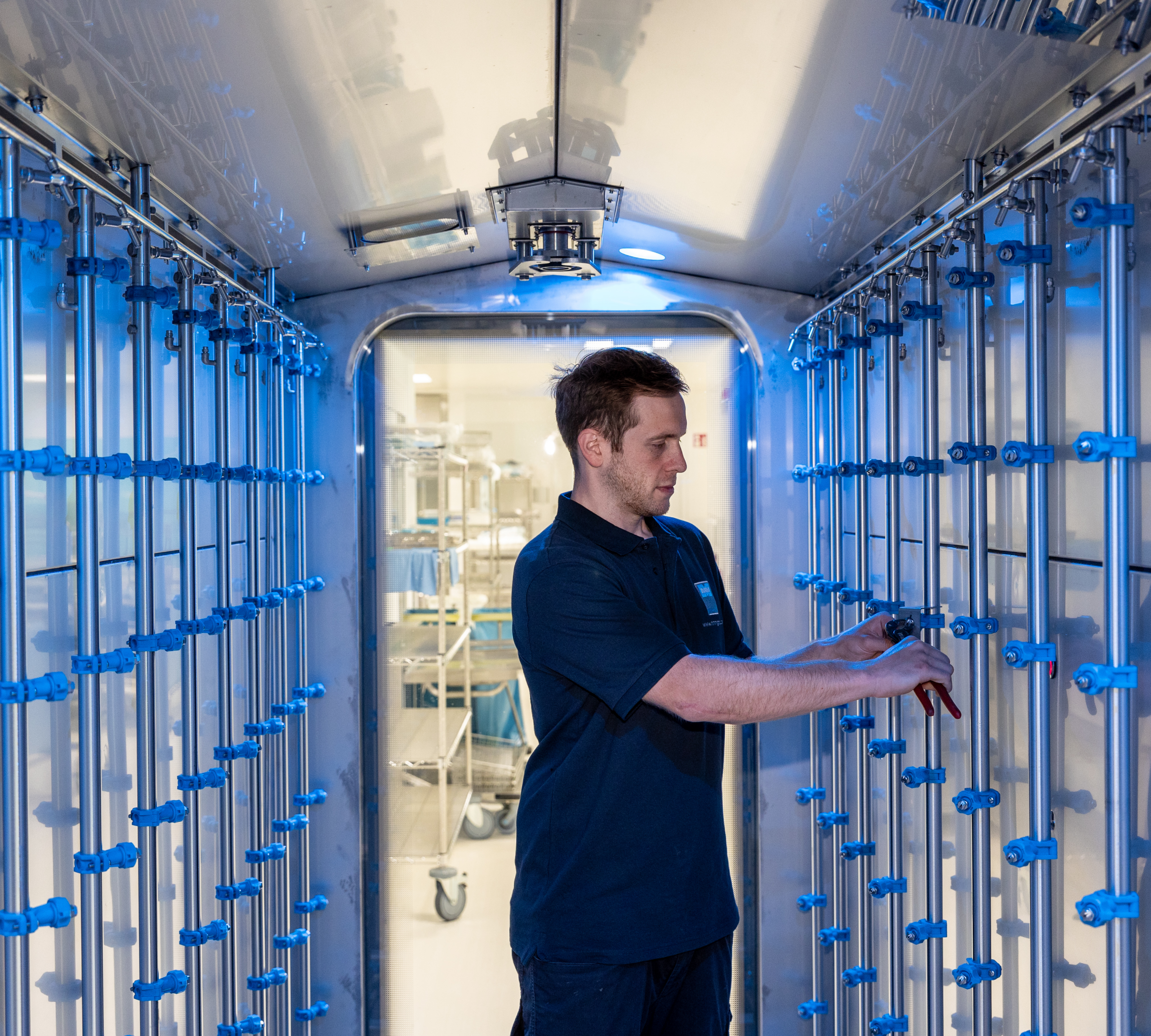

High-volume circulation system for strong mechanical action
Thorough wetting of all surfaces, including difficult-to-reach areas
Optimised balance of water flow, pressure and detergents
Reliable cleaning of both simple and complex medical devices

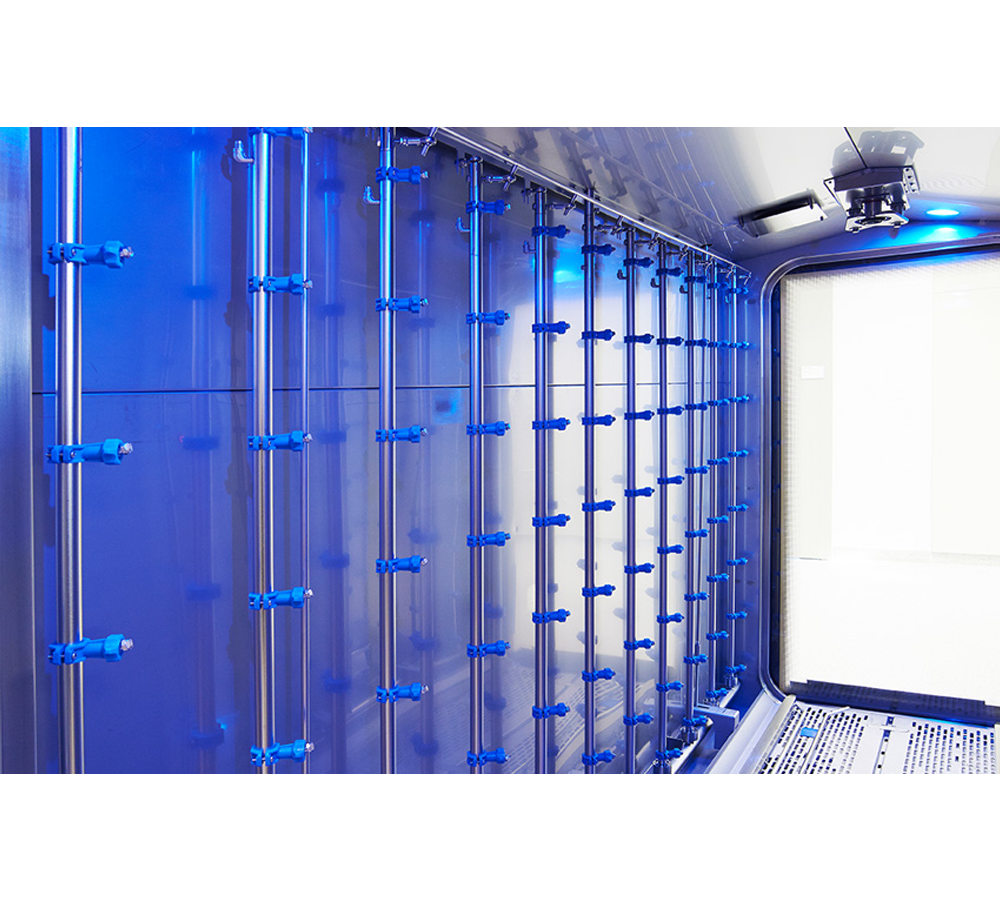

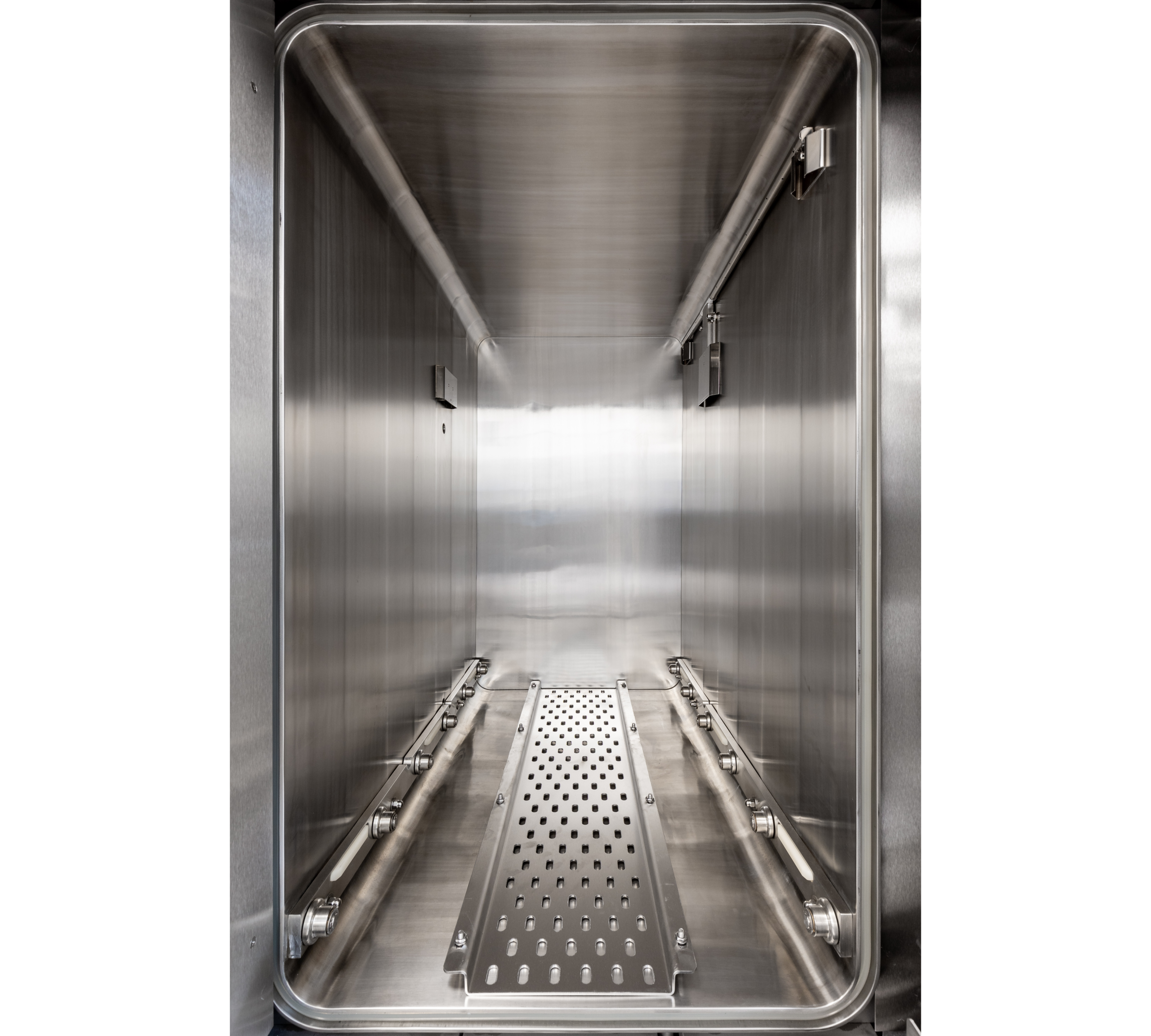

Hygienic System Design

Self-draining pipework eliminates residual water
Stainless steel fluid pathways minimise contamination risk
Sloped chamber design supports complete drainage
No carryover between process phases

These features ensure safe and validated instrument reprocessing for clinical environments.

SECOspeed Drying System

The integrated drying system combines fresh air and recirculated air to deliver:

Rapid drying across all load levels
Reduced cycle times and improved throughput
Energy-efficient heat utilisation
HEPA-filtered airflow for hygienic drying

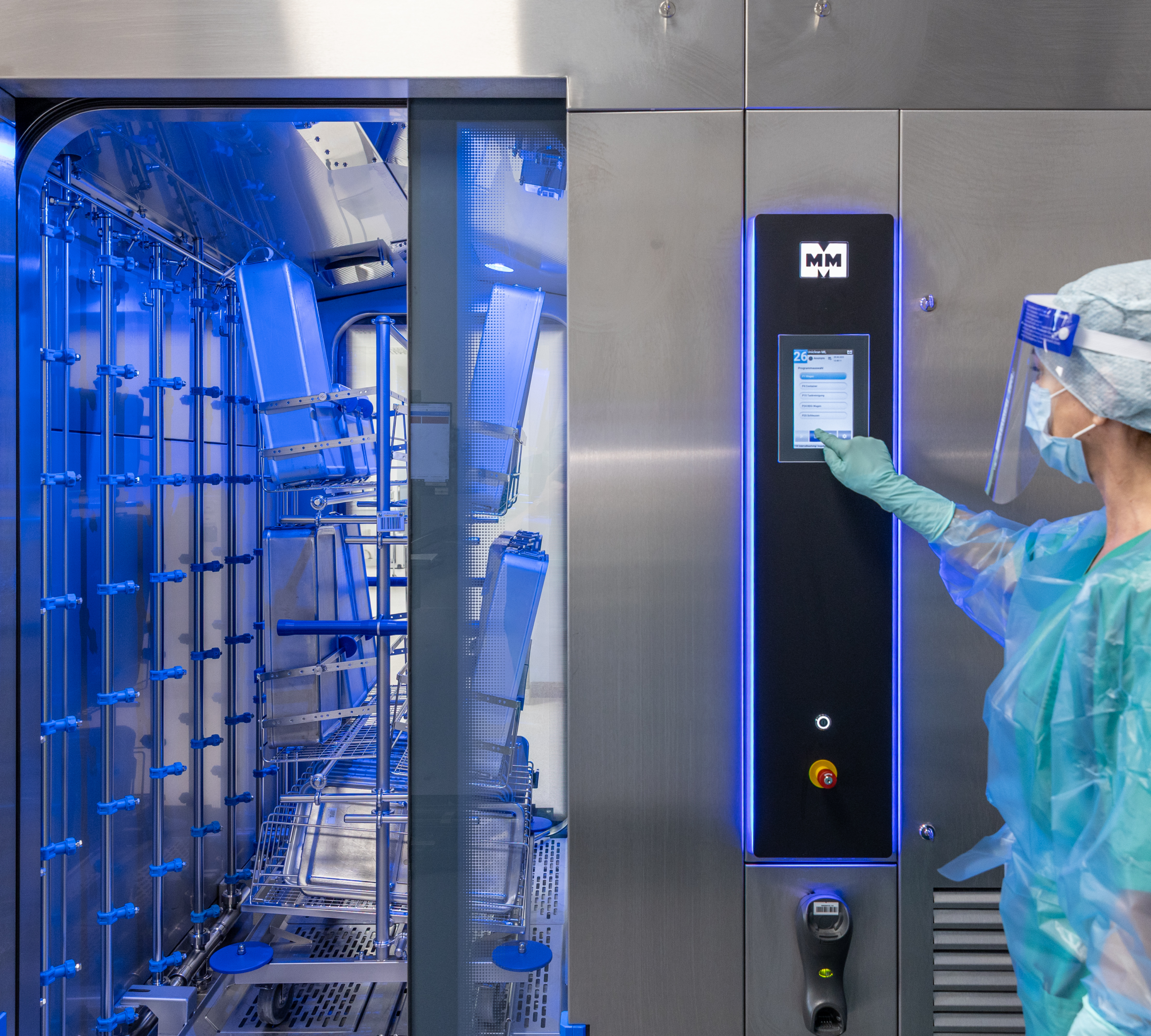

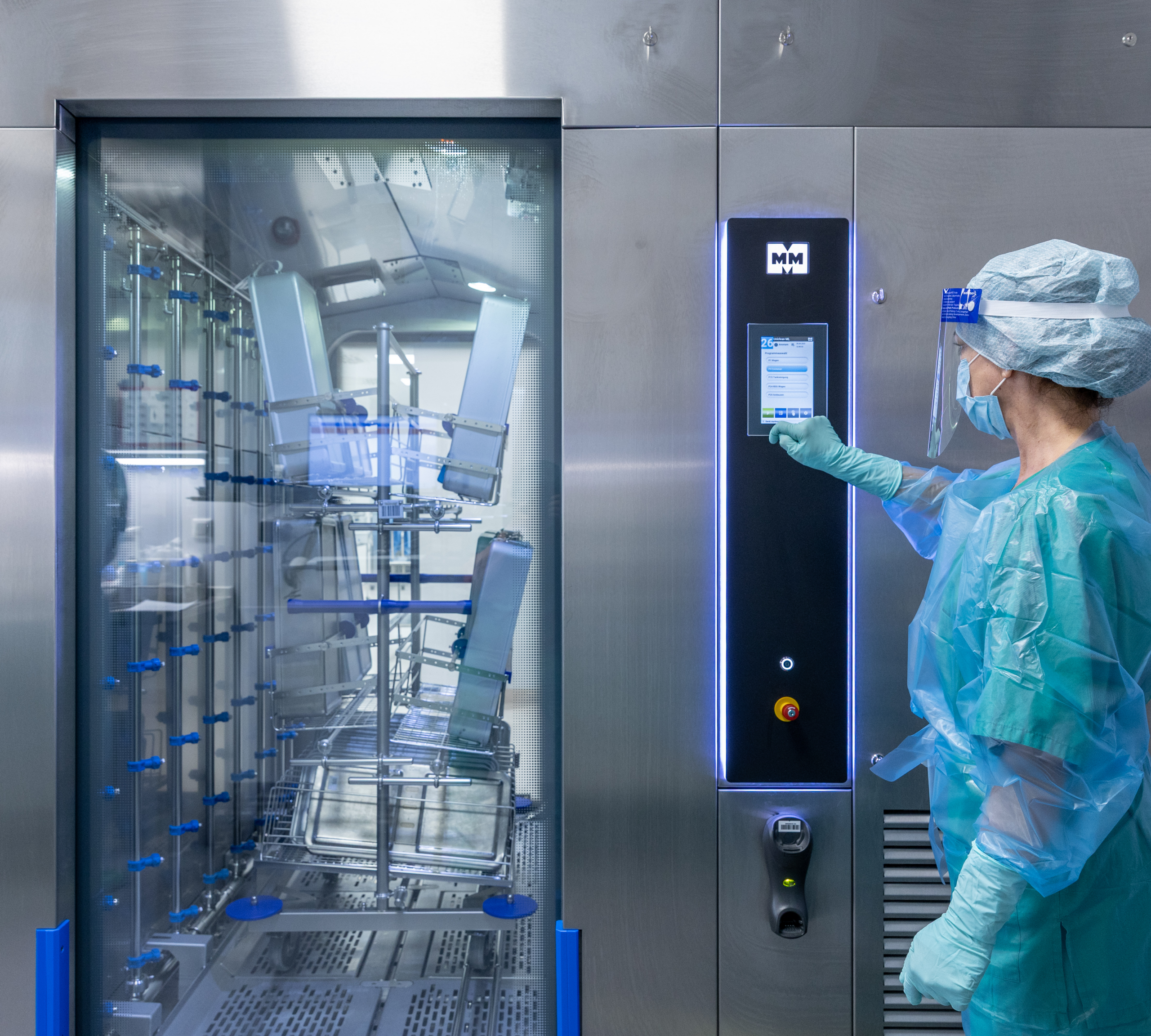

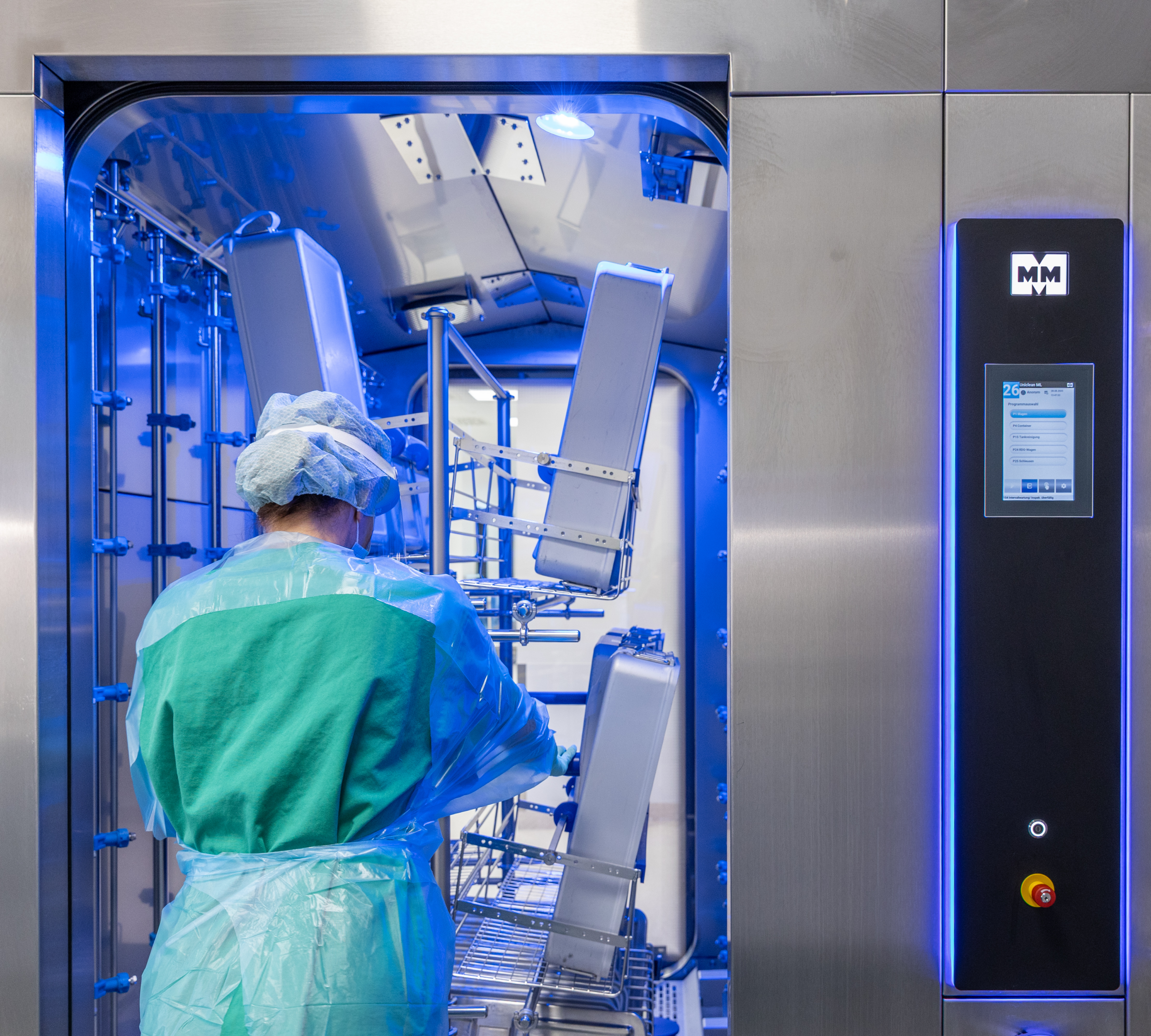

Smart Operation with Halo LED & Smart HMI

The Halo LED panel and 7″ Smart HMI interface are designed to enhance usability and workflow efficiency in busy CSSD environments.

Operator Benefits

Clear status indication visible from a distance
Intuitive touchscreen navigation
Large remaining-time display for better planning
Configurable programs to suit different loads
Energy-saving standby mode

This combination improves operator confidence while reducing training requirements.

Designed for Flexible CSSD Workflows

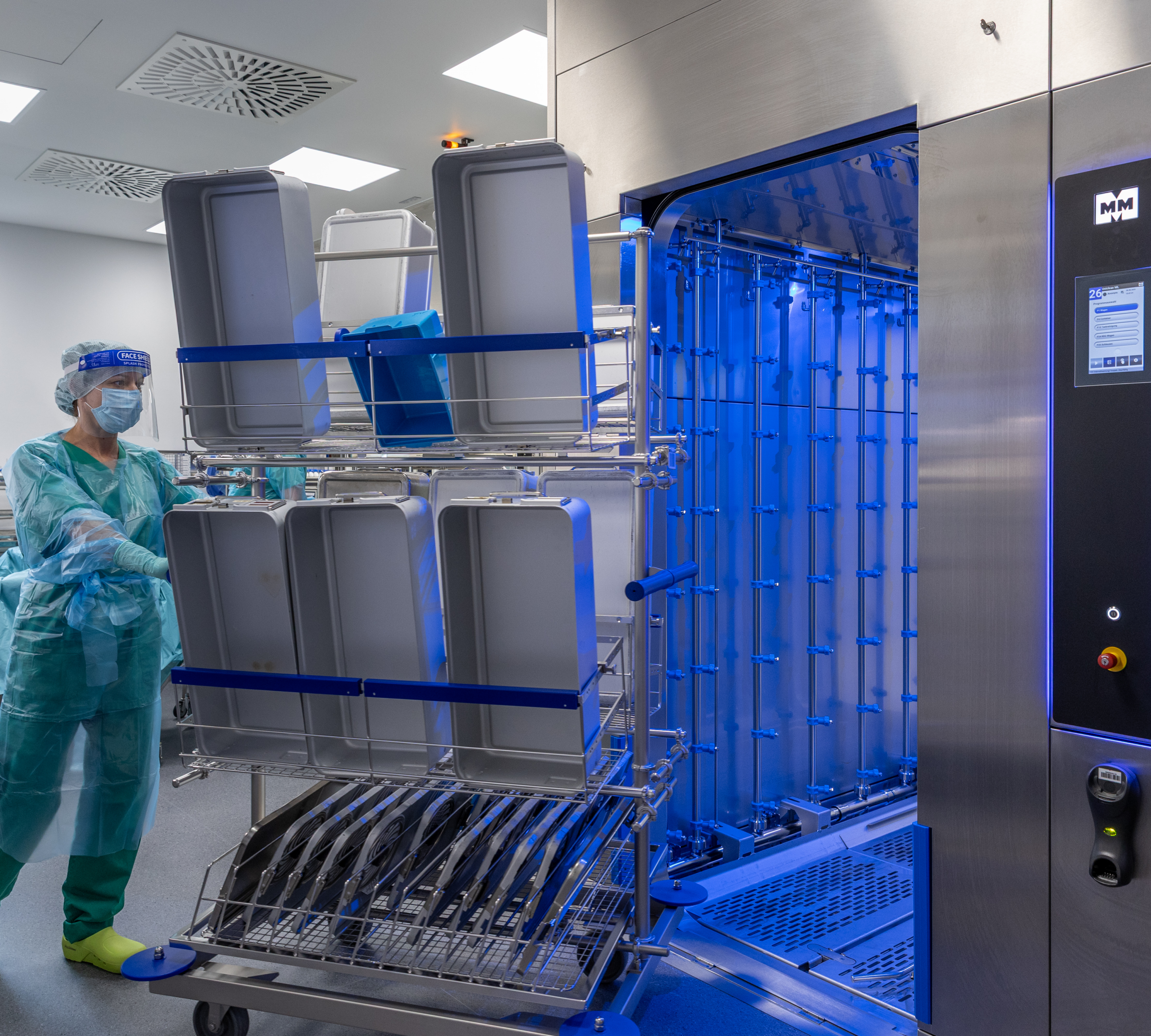

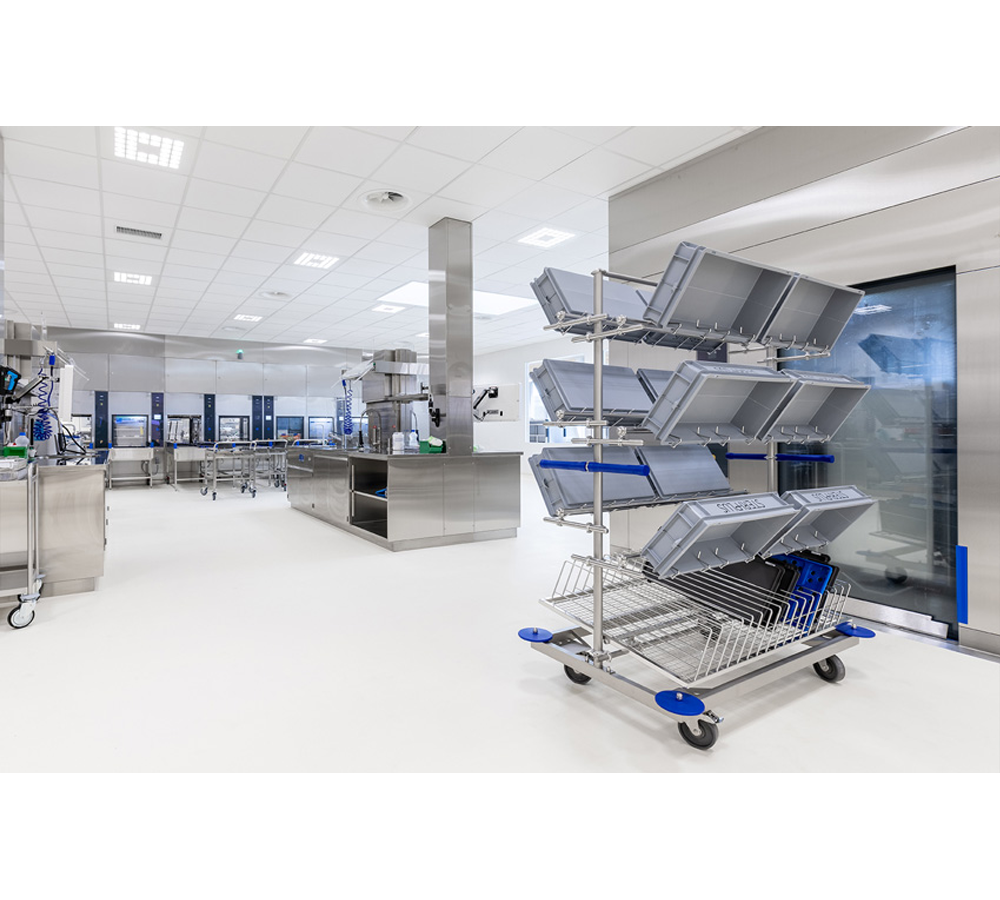

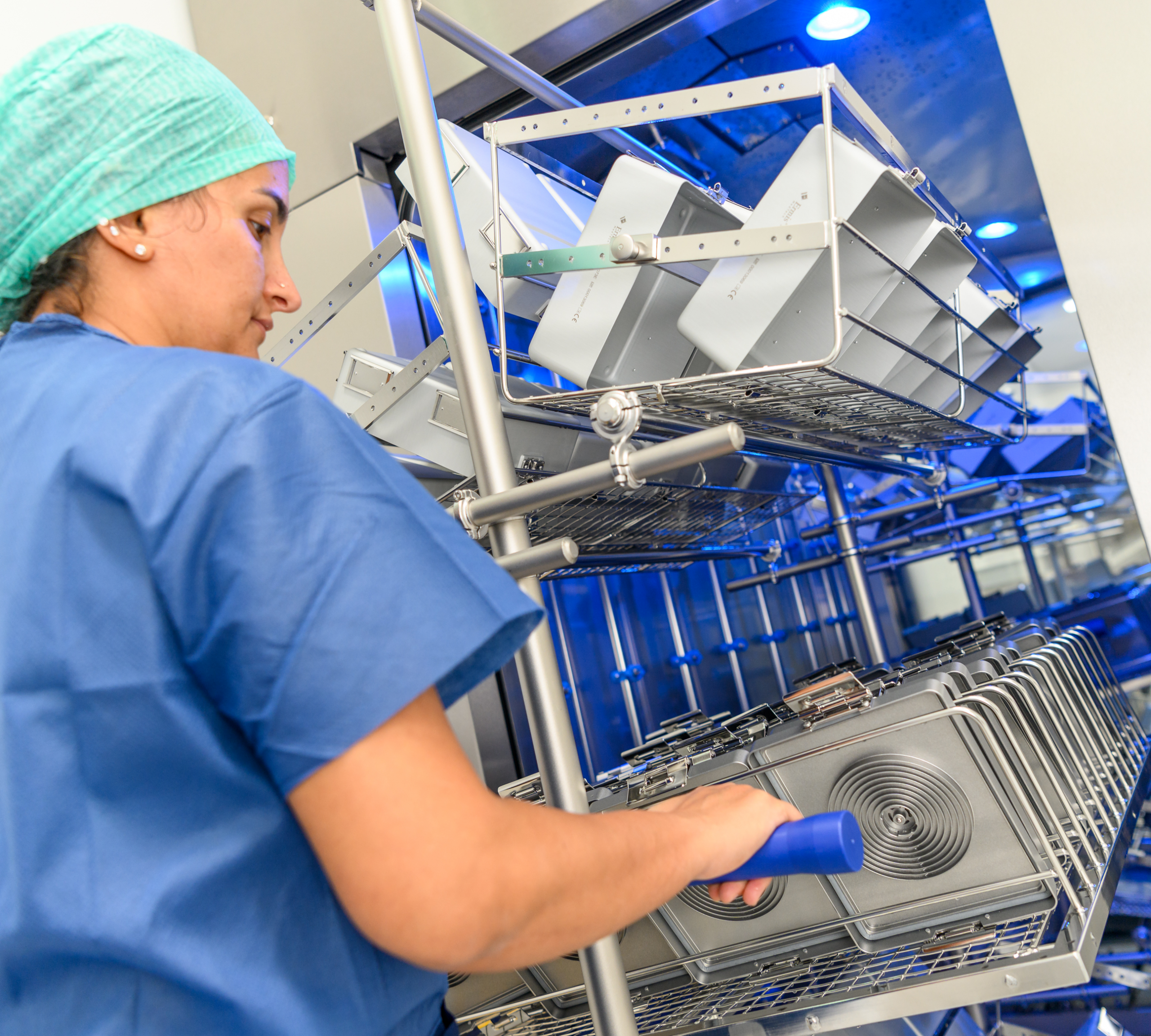

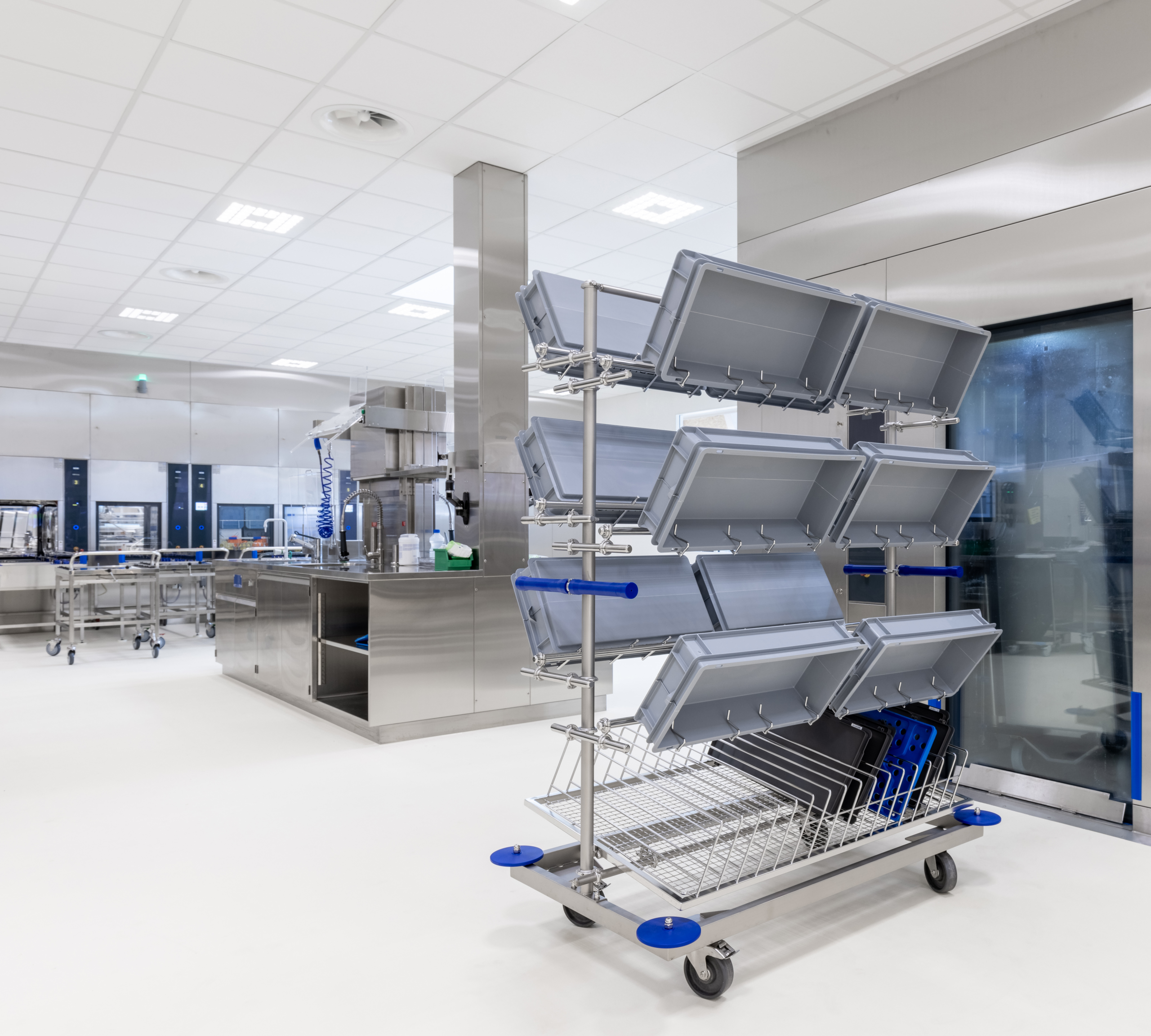

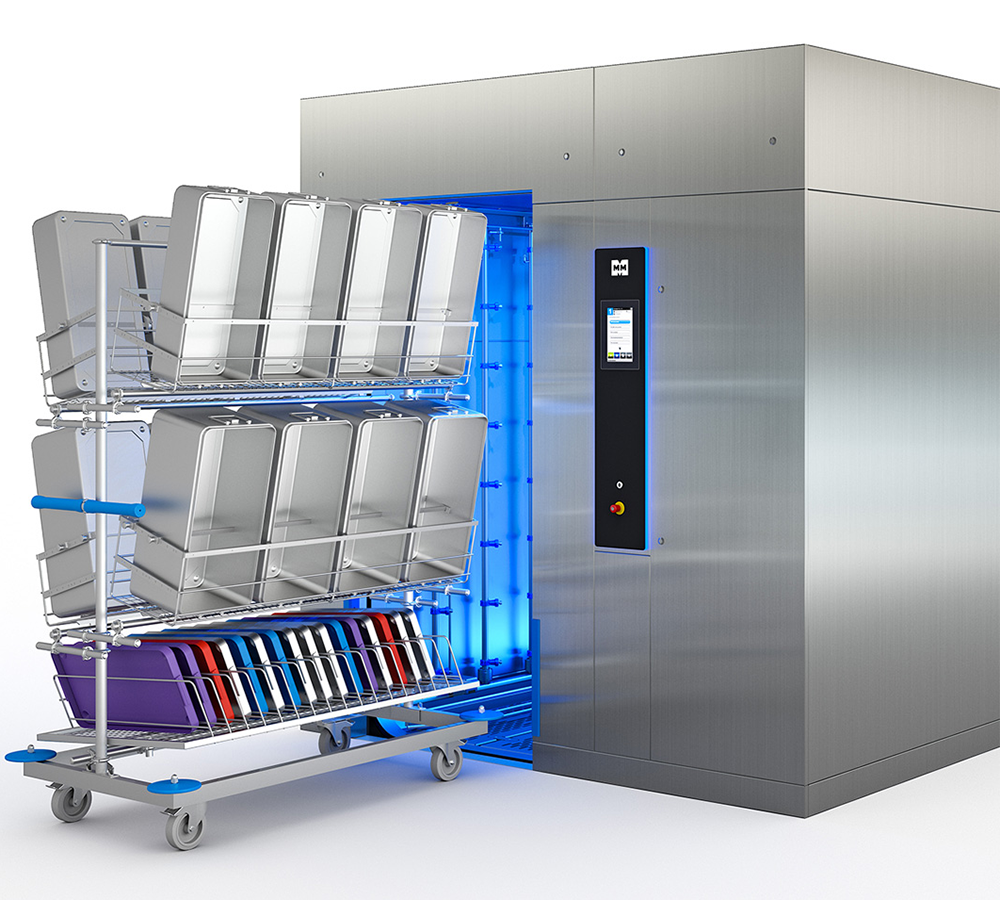

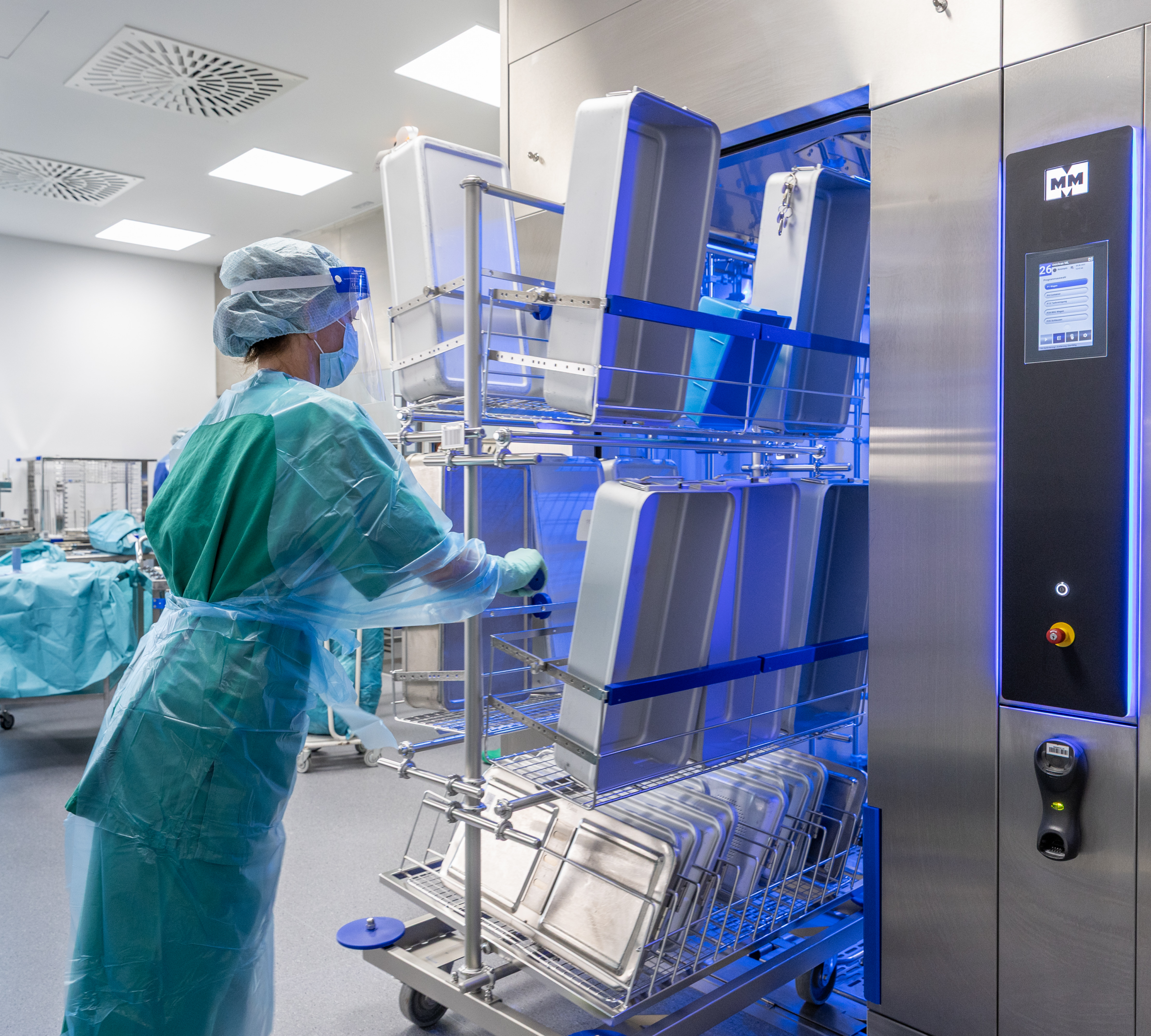

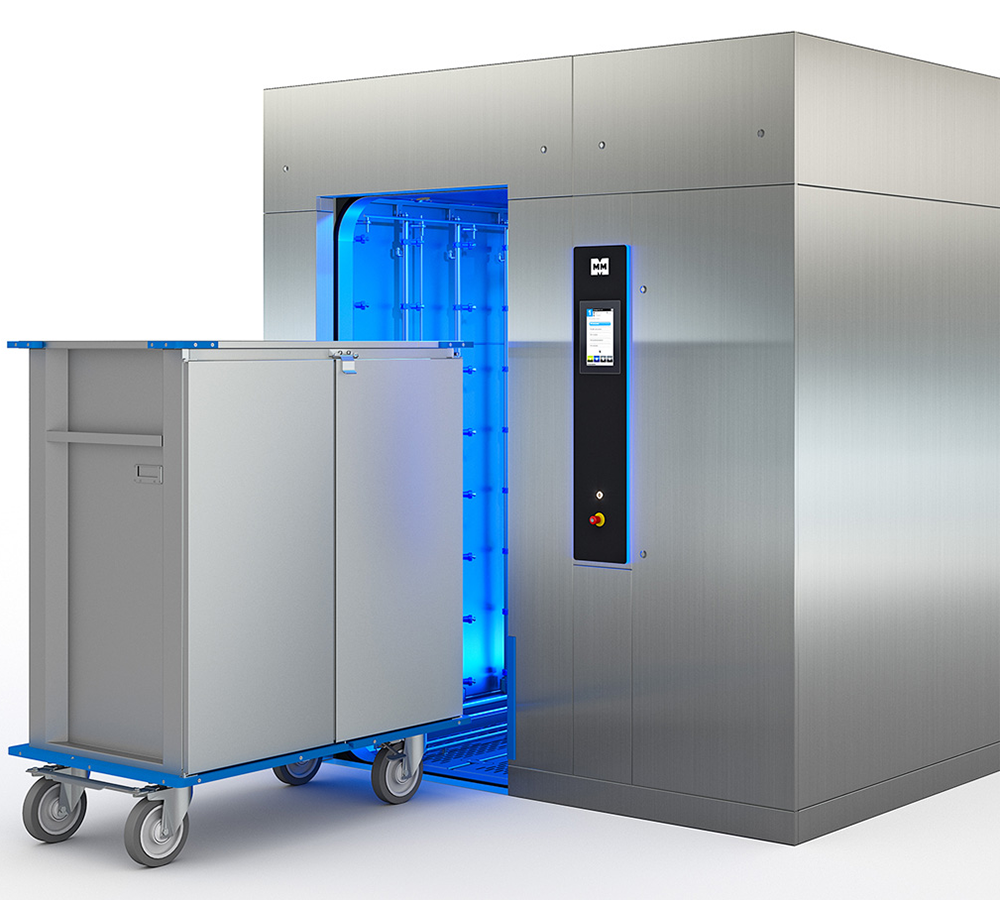

Modular Loading Trolley System

The Uniclean® ML supports a wide range of loading configurations, including:

Instrument trolleys
Container trolleys
Mixed-load configurations

Key Features

Open design for optimal cleaning and drying
Adjustable loading levels
Durable, stable construction
Easy-glide movement with minimal operator effort
Cool-touch handles for safe unloading

Correct loading is critical — and this system supports consistent, repeatable results across all load types.

Technical Data

Dimensions (mm)	Uniclean ML - 1620	Uniclean ML - 2220	Uniclean ML - 3120
Product Outer (H x W* x D)	2,500 x 2,410 x 2,050	2,500 x 2,300 x 2,630	2,500 x 2,300 x 3,500
Product Chamber (H x W* x D)	2,000 x 1,060 x 1,650	2,000 x 1,060 x 2,230	2,000 x 1,060 x 3,100
Chamber Volume Net / Gross (L)	3,500	4,730	6,570

Standard Features

Hygienic, easy-to-clean machine design
AISI stainless steel chamber and pipework
Industrial PLC in IP55-rated control cabinet
Process Parameter Verification (PPV) system

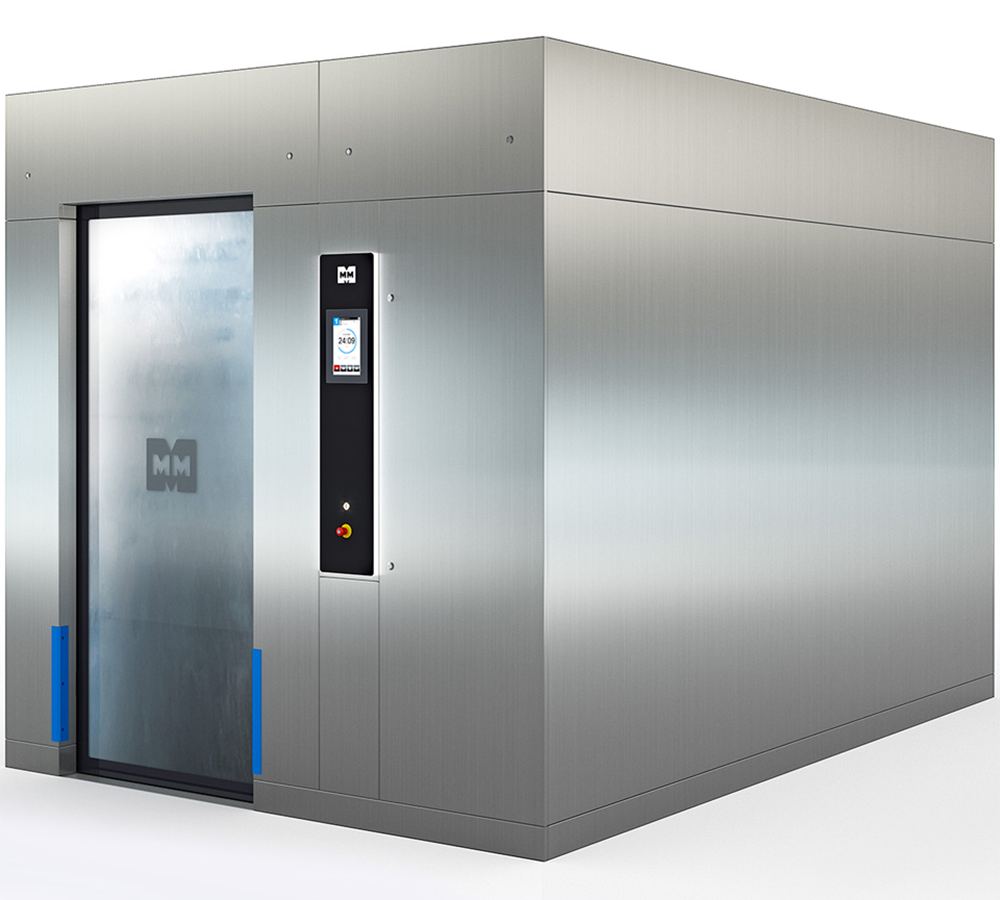

Automatic sliding glass doors
HEPA H14 filtration
SECOspeed drying technology
SANIcirc hygienic piping system
Pre-configured wash programs
Adjustable A₀ or temperature/time disinfection control
Three-colour LED chamber lighting

Optional Configuration

Pre-heating tanks for faster cycles
Water recovery system to reduce consumption
Automatic tank cleaning
Additional dosing pumps (up to 3)
Conductivity monitoring
Waste water cooling
Energy management system
Remote service access
Integrated reporting (DIN A4 printer)
Secondary display on unloading side

Digital Integration with RUMED360®

The Uniclean® ML can be integrated with digital documentation systems to support:

Automated cycle recording
Process traceability and compliance
Centralised monitoring of CSSD equipment
Energy and resource management

This supports transition to a more efficient, near paperless CSSD environment.

Sustainability & Resource Efficiency

The system is designed to reduce operational impact through:

Optimised water consumption per cycle phase
Reduced detergent usage
Optional process water recovery
Shorter cycle times through efficient heating
Energy management optimisation

Why Choose Uniclean® ML?

For healthcare facilities managing high volumes of instruments and reusable equipment, the Uniclean® ML provides a powerful and flexible alternative to traditional large scale washer disinfectors and CSSD tunnel washers.

It delivers:

High throughput with flexible configuration
Reliable performance across mixed load types
Optimised workflow efficiency in CSSD
A future-ready solution for growing hospital demand
