NZ Healthcare Bed Decontamination & Linen Disinfection System | Vacudes® PL
Advanced Hospital Bedding Hygiene Solution for Infection Prevention
ARTG
 |
 |
 |
 |
Features

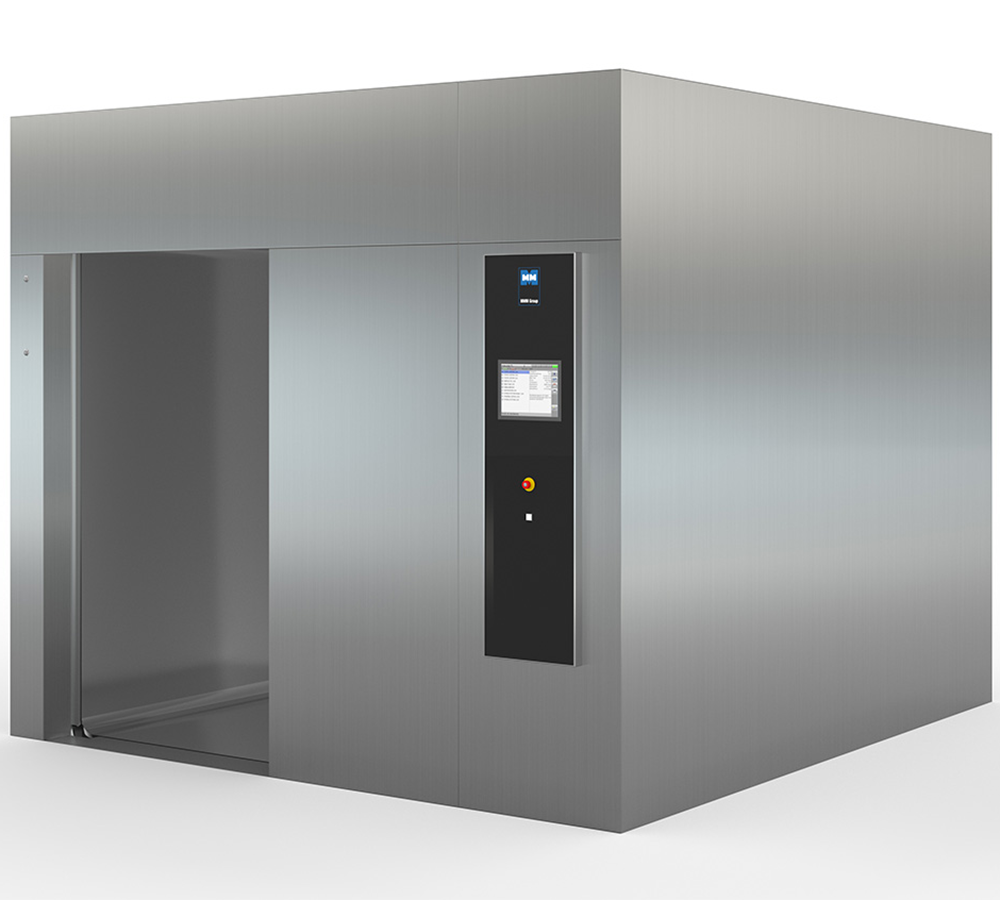

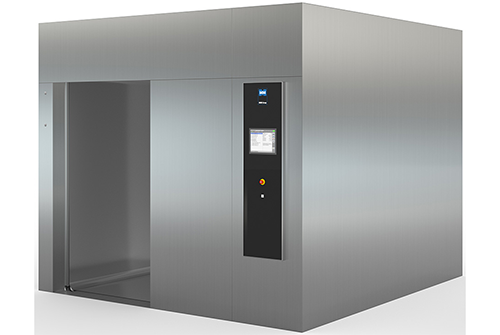

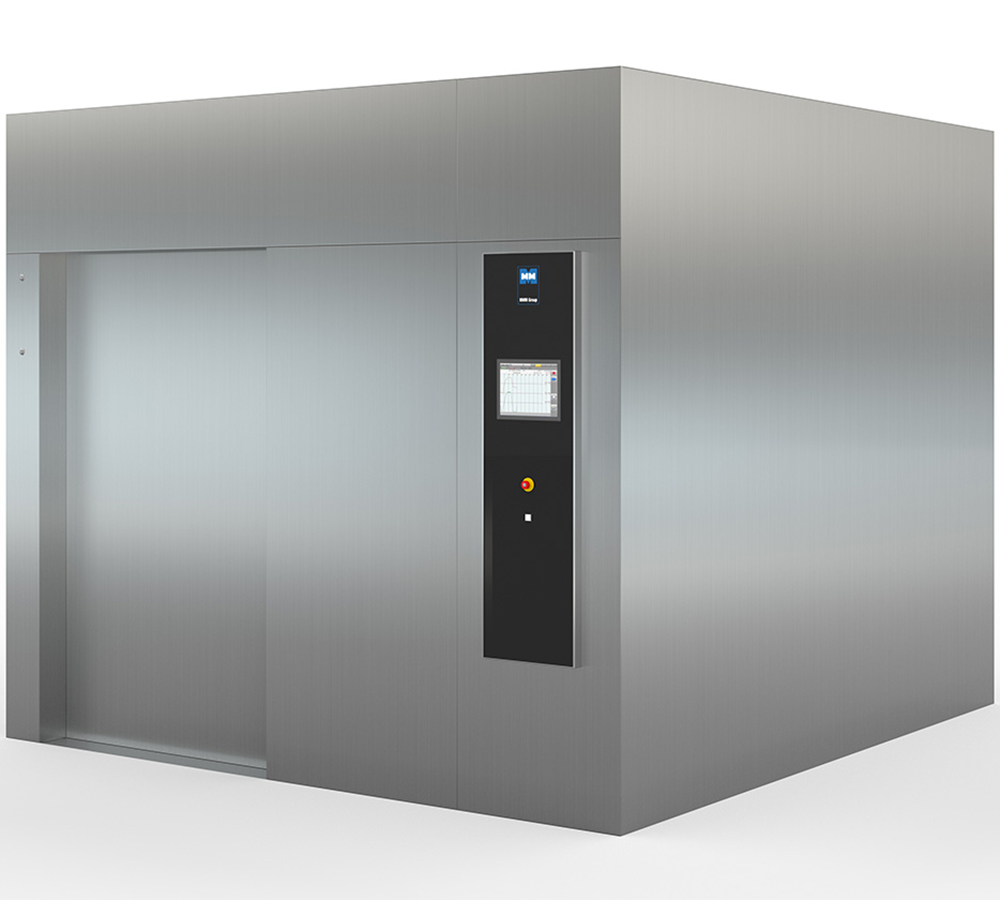

The Vacudes® PL steam disinfection system is designed to deliver reliable healthcare bed decontamination and hospital linen disinfection, supporting infection control in modern healthcare environments.
Engineered specifically for bedding stations, this high-capacity solution enables safe, automated medical bedding decontamination of mattresses, textiles and bed equipment. By using validated steam disinfection processes, Vacudes® PL helps hospitals reduce contamination risks and maintain consistent hygiene standards across reusable patient-contact materials.
Protecting Patients from Infection Risks
In healthcare environments, contaminated bedding and mattresses are a recognised vector for pathogen transmission, including multi-resistant organisms.
The Vacudes® PL provides a robust hospital bedding hygiene solution, using controlled steam processes to effectively deactivate microorganisms—including bacteria, fungi, viruses and spores—helping facilities strengthen their hospital laundry infection control strategy.
| Product Code | Product Description | Pack Size | Quote |
|---|---|---|---|
| Vacudes® PL 1500 | Vacudes® PL, Mounted on base, (nominal size acc. to DIN 58949 - 2 (10 x 8 x 21) | ea | |
| Vacudes® PL 2000 | Vacudes® PL, Mounted on base, (nominal size acc. to DIN 58949 - 3 (12 x 10 x 21) | ea | |
| Vacudes® PL 3000 | Vacudes® PL, Mounted on base, (nominal size acc. to DIN 58949 - 4 (16 x 10 x 21) | ea | |
| Vacudes® PL 1501 | Vacudes® PL, Montage in pit, (nominal size acc. to DIN 58949 - 2 (10 x 8 x 21) | ea | |
| Vacudes® PL 2001 | Vacudes® PL, Montage in pit,, (nominal size acc. to DIN 58949 - 2 (10 x 8 x 21) | ea | |
| Vacudes® PL 3001 | Vacudes® PL, Montage in pit, (nominal size acc. to DIN 58949 - 4 (16 x 10 x 21) | ea |
Designed for Hospital Bed and Linen Disinfection Workflows

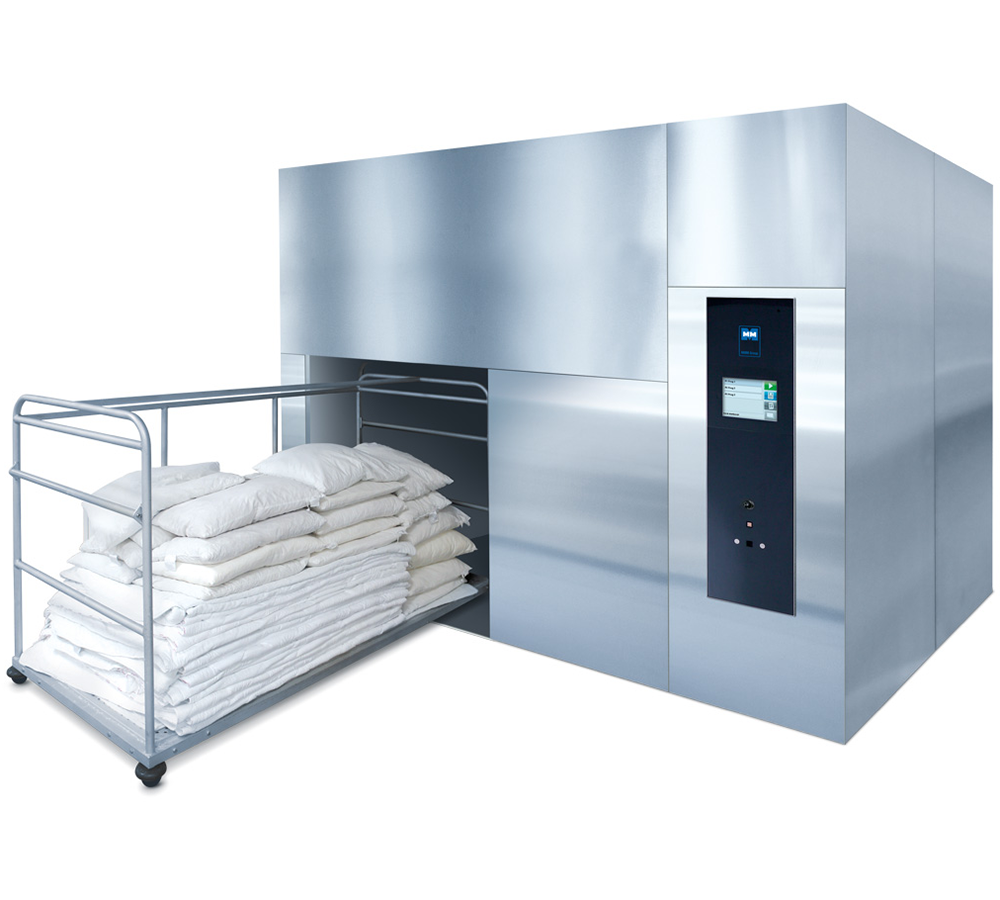

The Vacudes® PL is purpose-built for high-volume reprocessing of:
- Hospital mattresses and bed components
- Bed linen and textiles
- Patient-contact equipment and upholstery
- Clothing and reusable soft materials
- Infectious waste materials (where applicable configurations are used)
This makes it ideal for:
- Bedding stations in hospitals
- CSSD or support services departments
- Infection control and isolation workflows
- High-risk environments requiring consistent decontamination
Key Benefits of Vacudes® PL
Reliable Healthcare Mattress Sterilisation
Validated steam processes ensure repeatable and effective healthcare mattress sterilisation, supporting patient safety and compliance.
High-Volume Hospital Linen Sterilisation
Designed for efficient processing of large quantities of bedding and textiles, improving turnaround times and operational efficiency.
Improved Infection Control Outcomes
Supports comprehensive bed and linen disinfection solutions to reduce the risk of cross-contamination across wards.
Automated and Traceable Processes
Fully automated cycles with documented outputs enable audit-ready reporting and process validation.
Optimised Workflow Efficiency
Real-time cycle visibility and programmable operation support streamlined bedding station workflows.
Advanced Features Supporting Hospital Laundry Infection Control
Validated Steam Disinfection Technology
- Pulsed vacuum disinfection process for effective penetration
- Multiple disinfection programs (AB, AB + HEPA, ABC) to suit different risk profiles
- Automatic cycle execution with consistent results
User-Friendly Operation
- MMM Smart HMI with intuitive touchscreen interface
- Clear cycle status and remaining time display
- Flexible program configuration to suit facility requirements
Integrated Documentation & Traceability
- Automated cycle reporting via integrated or external printer
- Digital data transfer for archiving and audit purposes
- Verifiable disinfection records to support regulatory compliance
Independent and Flexible Steam Supply
- Integrated electric steam generator for facilities without central steam
- Optional connection to external steam supply
- Tailored energy output to match operational demand
Designed for Safety and Operational Control
- Certified medical device compliant with MDR (EU 2017/745)
- Automated process control with validated performance
- High operator safety through enclosed, controlled disinfection cycles
- Suitable for both medical and controlled non-medical reprocessing applications
Sustainability and Resource Efficiency
The Vacudes® PL supports sustainable healthcare operations through:
- Reduced water usage via optimised vacuum pump and cooling systems
- Optional connection to external cooling circuits (reducing water consumption significantly)
- Energy-efficient standby and autostart functions
These features contribute to lower operating costs and reduced environmental impact.
Technical Data
|
Dimensions (mm) |
Product Outer (HxWxD) |
Capacity in mattresses acc. to DIN 13014-M 2000 |
Capacity in bed equipment acc. to DIN 58949 |
| Vacudes® PL 1500 | 2,488 x 2,490 x 2,860 | 9 | 4 BE |
| Vacudes® PL 2000 | 2,488 x 2,690 x 2,860 | 9 | 7 BE |
| Vacudes® PL 3000 | 2,488 x 2,690 x 2,860 | 12 | 10 BE |
| Vacudes® PL 1501 | 2,318 x 2,530 x 2,860 | 6 | 4 BE |
| Vacudes® PL 2001 | 2,318 x 2,730 x 2,860 | 9 | 7 BE |
| Vacudes® PL 3001 | 2,318 x 2,730 x 2,860 | 12 | 10 BE |
Technical Overview
- Applications: Healthcare bed decontamination, hospital linen sterilisation
- Load types: Solid and porous materials including mattresses and textiles
- Process: Pulsed vacuum steam disinfection
- Capacity: Configurable for bedding and mattress loads
- Control: PLC with touchscreen interface
- Steam supply: Integrated or external
Why Choose Vacudes® PL for Hospital Bedding Hygiene?
- Purpose-built for hospital bed and linen disinfection solutions
- Delivers consistent, validated medical bedding decontamination
- Supports infection prevention across high-risk healthcare environments
- Enables scalable, high-volume processing of bedding and textiles
- Aligns with modern hospital laundry infection control strategies
